ABB ACS880 Series Quick Start Up Guide

Contents of the manual
The manual consists of the following chapters:
 Introduction describes how to configure ABB Drives function blocks for Siemens PLC’s.
 Drive configuration describes how to configure the drive for PROFIBUS DP or PROFINET
control based on ABB specific drives library ABB_DRIVE_LIB.
 SIMATIC Manager provides the examples to configure S7-300 series PLC.
 TIA portal provides the examples to configure S7-300 and S7-1200 series PLC.
Related documents
A list of related manuals is printed on the inside of the front cover.
SIMATIC Manager/TIA portal with ABB drives and PROFIBUS
module setup

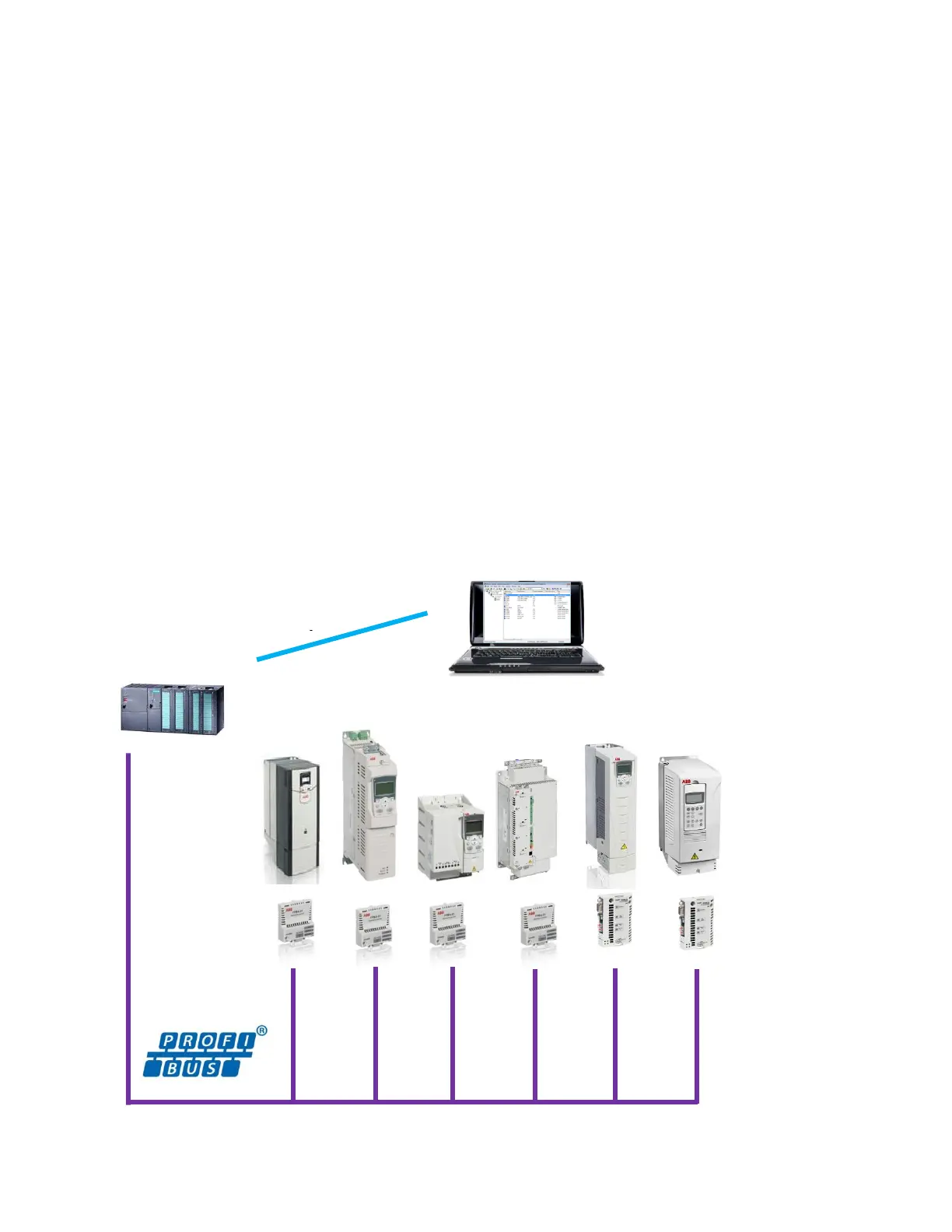

The figure below shows an example of SIMATIC Manager/TIA portal with ABB drives and PROFIBUS
module setup.
SIMATIC Manager/TIA
portal
Siemens PLC
ETHERN
ET or
serial
connecti
on
ABB drives
ABB
PROFIBUS
modules

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
