ABB ACS880 Series Quick Start Up Guide

85
Adding ABB drives to PROFINET
Note: After installing GSDML files, ABB drives are added to the hardware catalog of TIA portal.
1. Select Network view, and then from the hardware catalog pane, drag and drop the required ABB
Drive to the PLC PROFINET network.

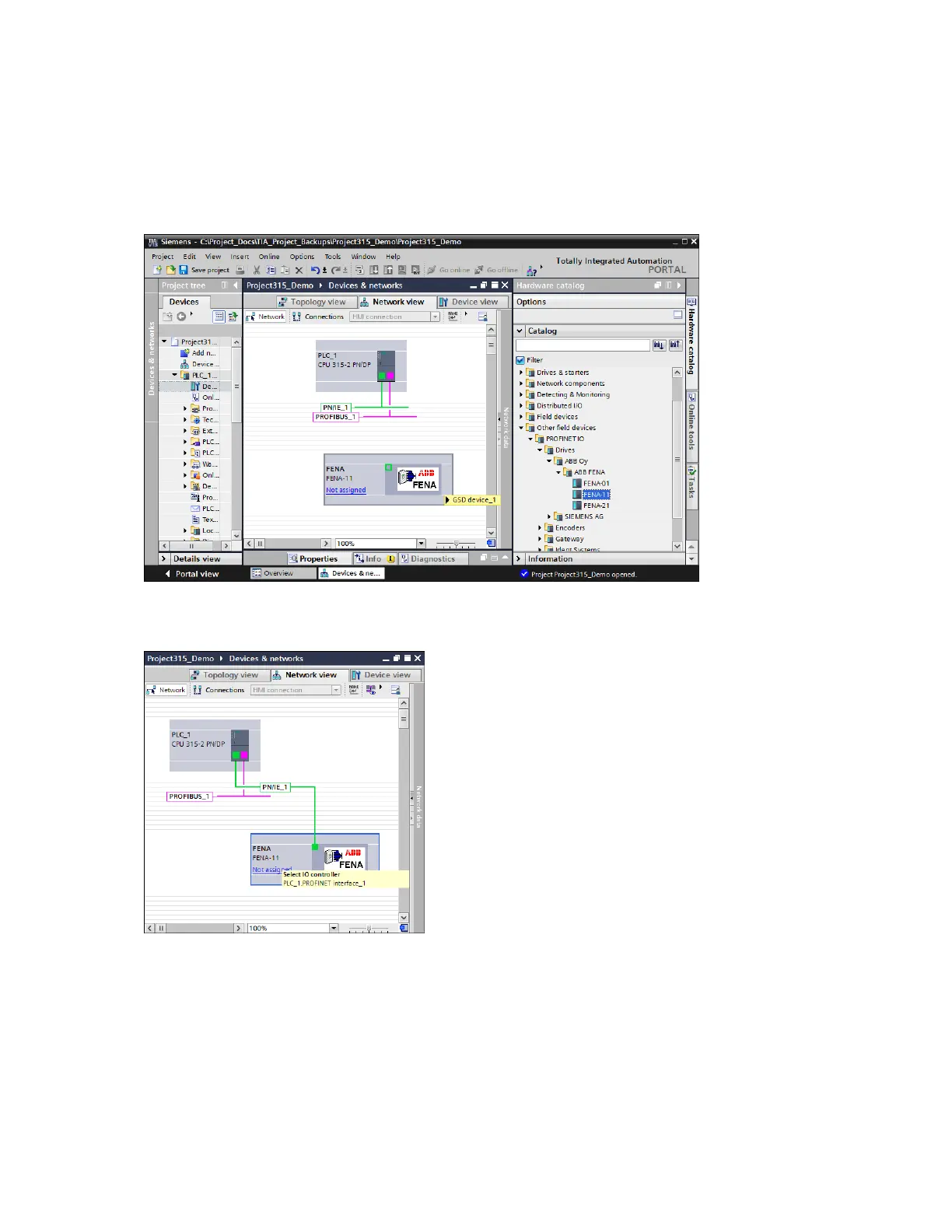

Figure 74 PLC PROFINET
2. In the ABB drive, connect PLC to the PROFINET interface.
Figure 75 PROFINET interface
3. Select the ABB drive (FENA) and click Device view to configure PROFNET IP address and
device name.

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
