PLC libraries for S7-1200
Adding ABB drives to PROFIBUS DP line
1. Launch TIA portal and click Open the project view in the Start options.
Note: After installing GSD files, ABB drives are added to the hardware catalog of TIA portal.
2. In the Project tree pane, double-click Device & networks.

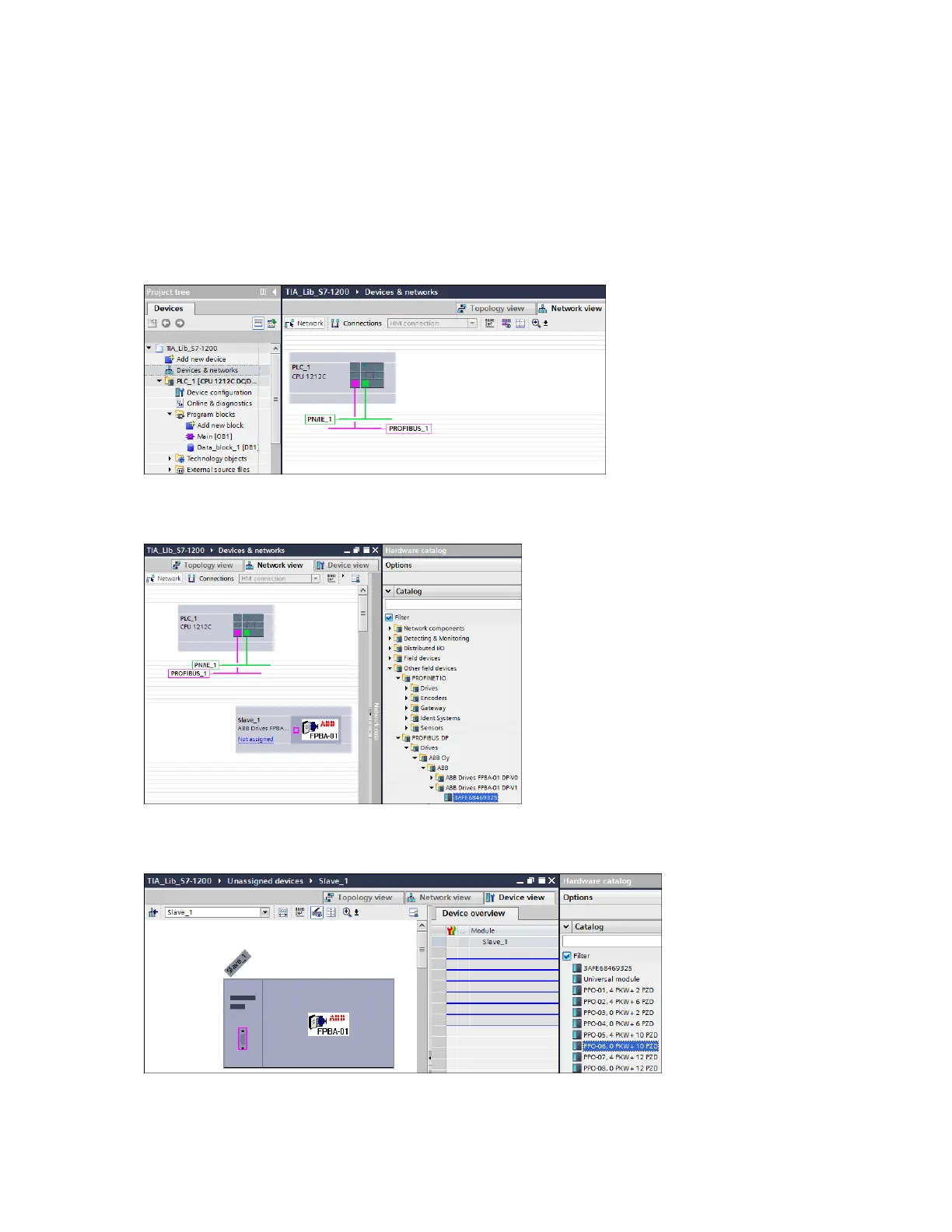

Figure 116 Devices and network for S7-1200
3. From the hardware catalog pane, drag and drop the required ABB Drive to the PLC.
Figure 117 ABB drive and PLC
4. Double-click Slave_1 to navigate the device view for adding required PPO type.
Figure 118 PPO type for S7-1200

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
