ABB ACS880 Series Quick Start Up Guide

Copying ABB drive libraries to S7-1200 project
Prerequisites: Check for the ABB Drive libraries available in the user PC.

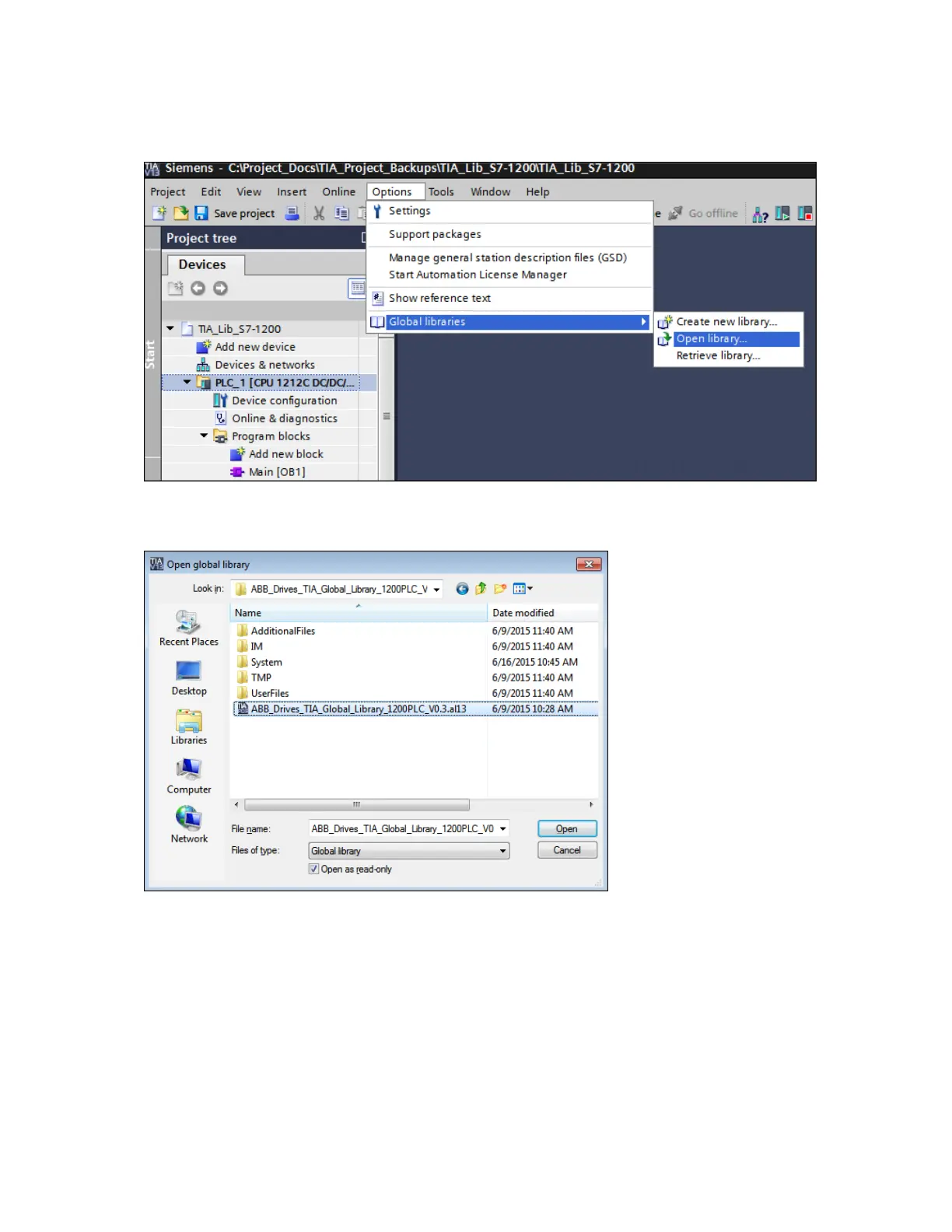

1. In the TIA portal main menu, navigate to Options → Global libraries → Open library.
Figure 136 Global libraries
2. Select the required ABB Drive library in the file system and click Open.
Figure 137 File system

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
