ABB ACS880 Series Quick Start Up Guide

Copying ABB drive libraries to S7-300 project
Prerequisites: Check for ABB Drive libraries available in the user PC.
1. In the main menu of TIA portal, navigate to Options → Global libraries → Open library.

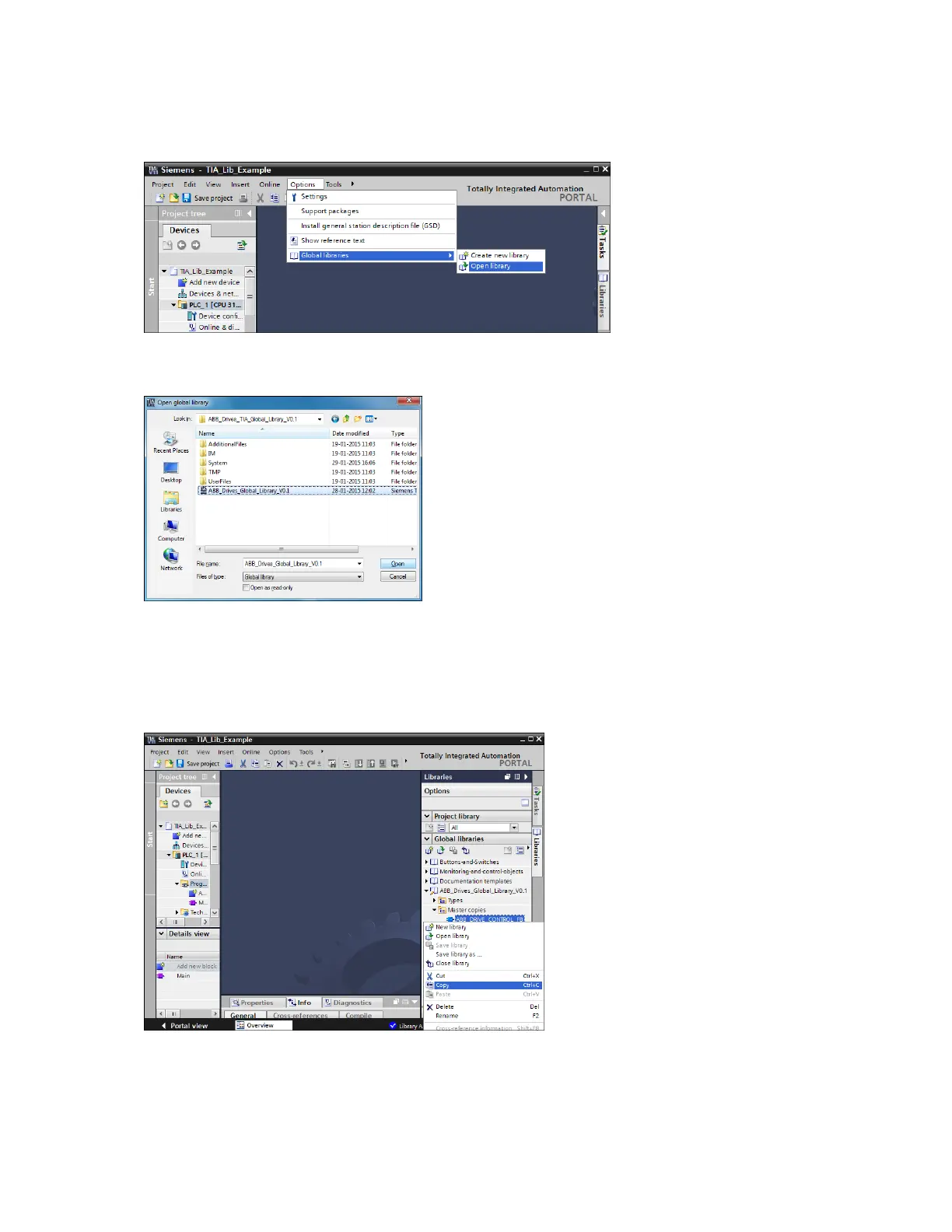

Figure 84 Global library
2. Select the required ABB drive library in the file system and click OK.
Figure 85 File system
After selecting ABB drive library, on the right side of the TIA portal window, the application
displays Libraries pane with the selected library.
3. Expand ABB_Drives_Global_Library → Master copies and right-click
ABB_DRIVE_CONTROL_FB and then click Copy.
Figure 86 Libraries

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
