ABB ACS880 Series Quick Start Up Guide

93
Adding PLC tags to S7-300
1. In the Project tree pane, expand PLC tags and double-click Add new tag table to create
symbols.

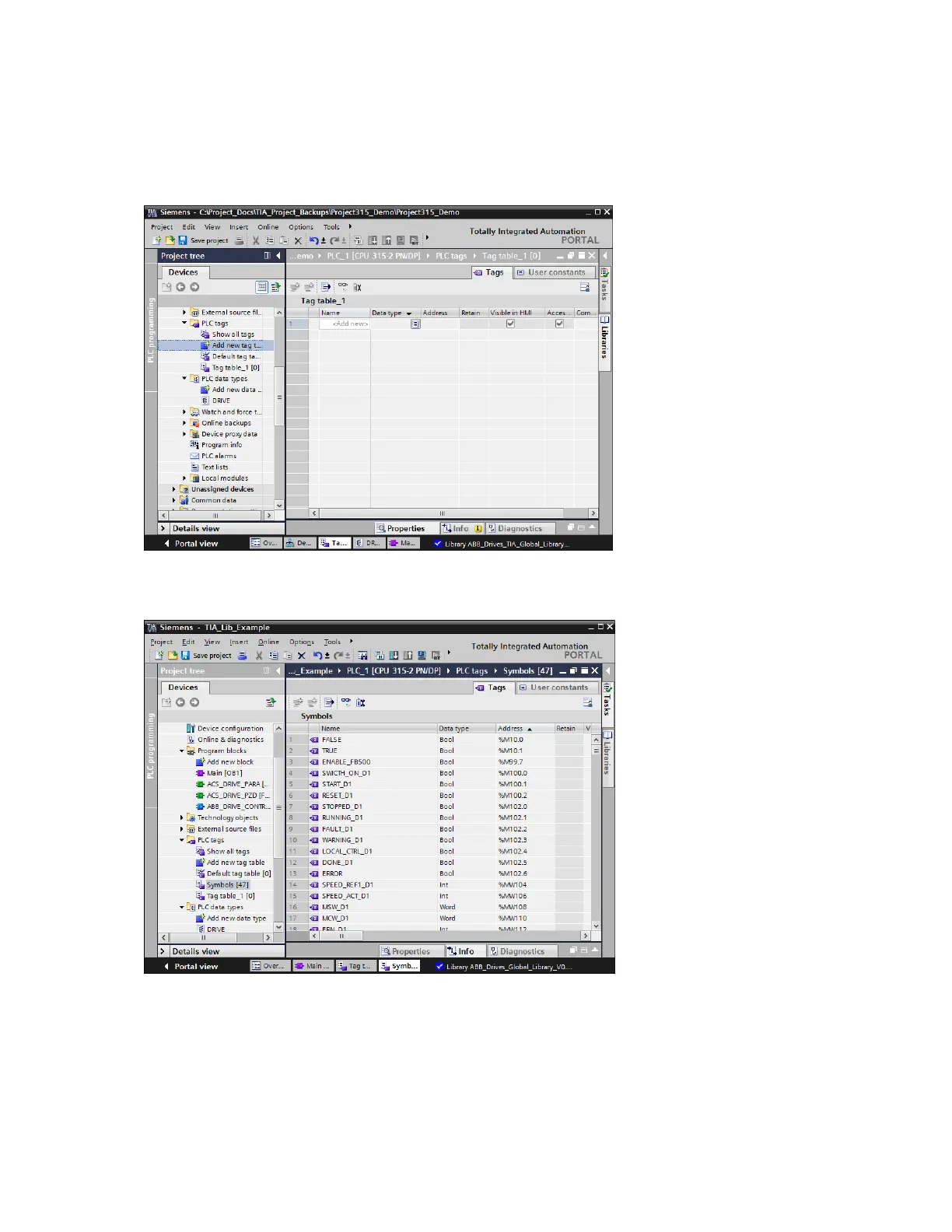

Figure 91 New tag table
2. Add tag Name, Data type and Address to connect block inputs and outputs.
Figure 92 PLC tags
For information on Data types of tags, see sections Block variables and data types (page 60),
Block variable and data types for FC501 (page 66) and Block variables and data types for FC500
(page 69).

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
