ABB ACS880 Series Quick Start Up Guide

129
FB501 ACS_DRIVE_PARA
FB501 is used to read/write extra parameters between the PLC and the drive.
1. Right-click in the next free network and choose Insert empty box.
2. Write FB501 in the block field to create an instance of FB501 (FC500 ACS_DRIVE_PARA is
included in the ABB library ABB_DRIVE_LIB).

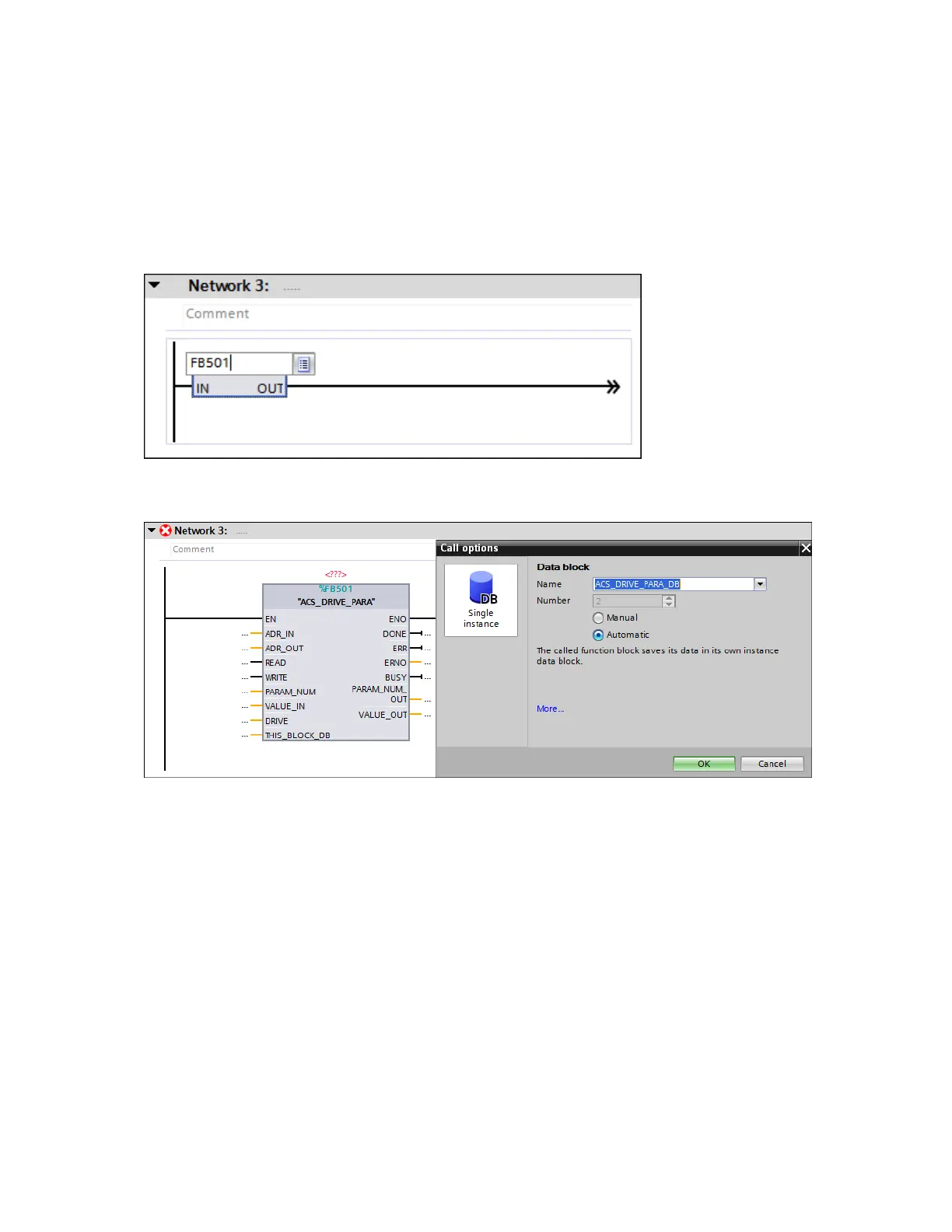

Figure 154 FB501
3. Create a unique Data block by enabling Manual option and by selecting the Number.
Figure 155 FB501 DB1
Drive parameter number, its value are stored in the Data block. Since it is a new Data block, you
have to generate it by clicking OK in the following pop-up window.
4. Connect the FB501 block inputs and outputs.

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
