ABB ACS880 Series Quick Start Up Guide

Adding Rack and CPU to the hardware

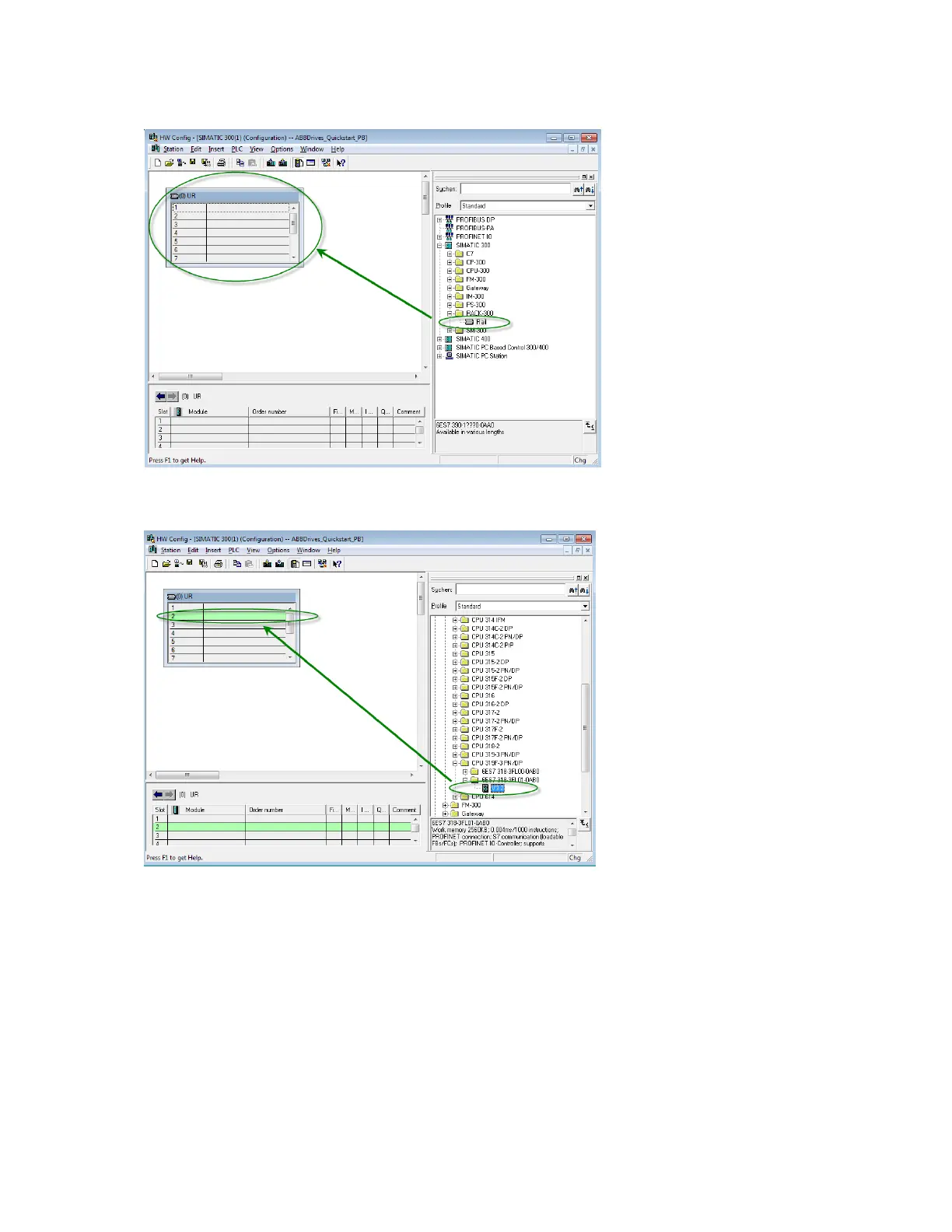

1. Use mouse drag and drop function to add a Rail for the SIMATIC station.
Figure 6 Rail
2. Similarly, drag and drop actual CPU type to slot 2 of the rack.
Figure 7 CPU type

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
