ABB ACS880 Series Quick Start Up Guide

79

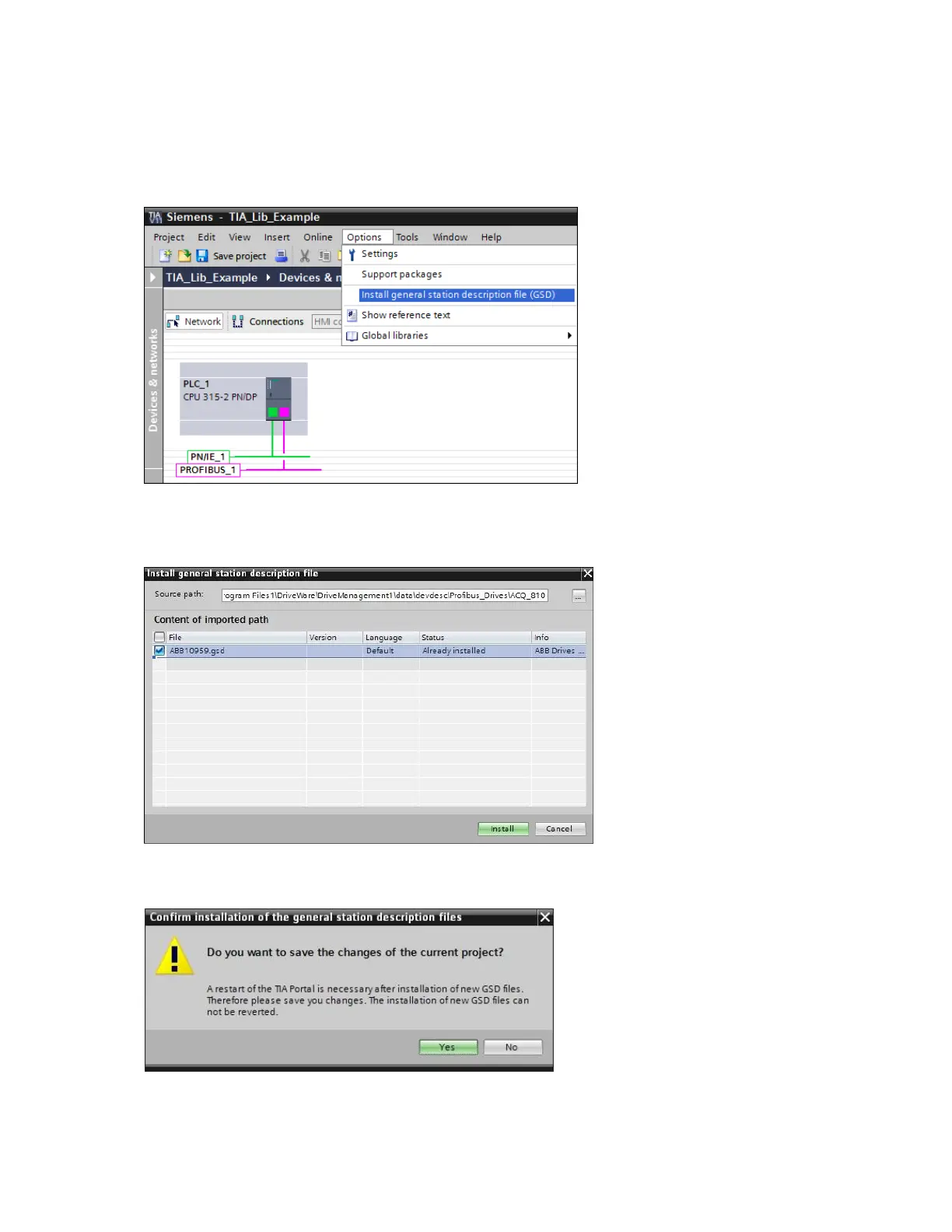

Installing GSD and GSDML file for S7-300 PLC
1. In the TIA portal main menu, click Options and then click Install general station description
files (GSD).
Figure 61 Installing general station description file
2. Browse and select the required GSD files for PROFIBUS or GSDML files for PROFINET and click
Install.
Figure 62 Installing GSD file
3. A popup window is displayed to confirm installing the GSD file. Click Yes.
Figure 63 Popup window

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
