ABB ACS880 Series Quick Start Up Guide

FB500 ABB_DRIVE_CONTROL_FB
FB500 is used to control the drive (start, stop, reset, emergency stop, speed reference, etc.).
Note: The following description is an example, there are different ways to use the Control function block.
1. In the Program blocks, double-click Main [OB1] and create memory bits for Logic true and Logic
false.

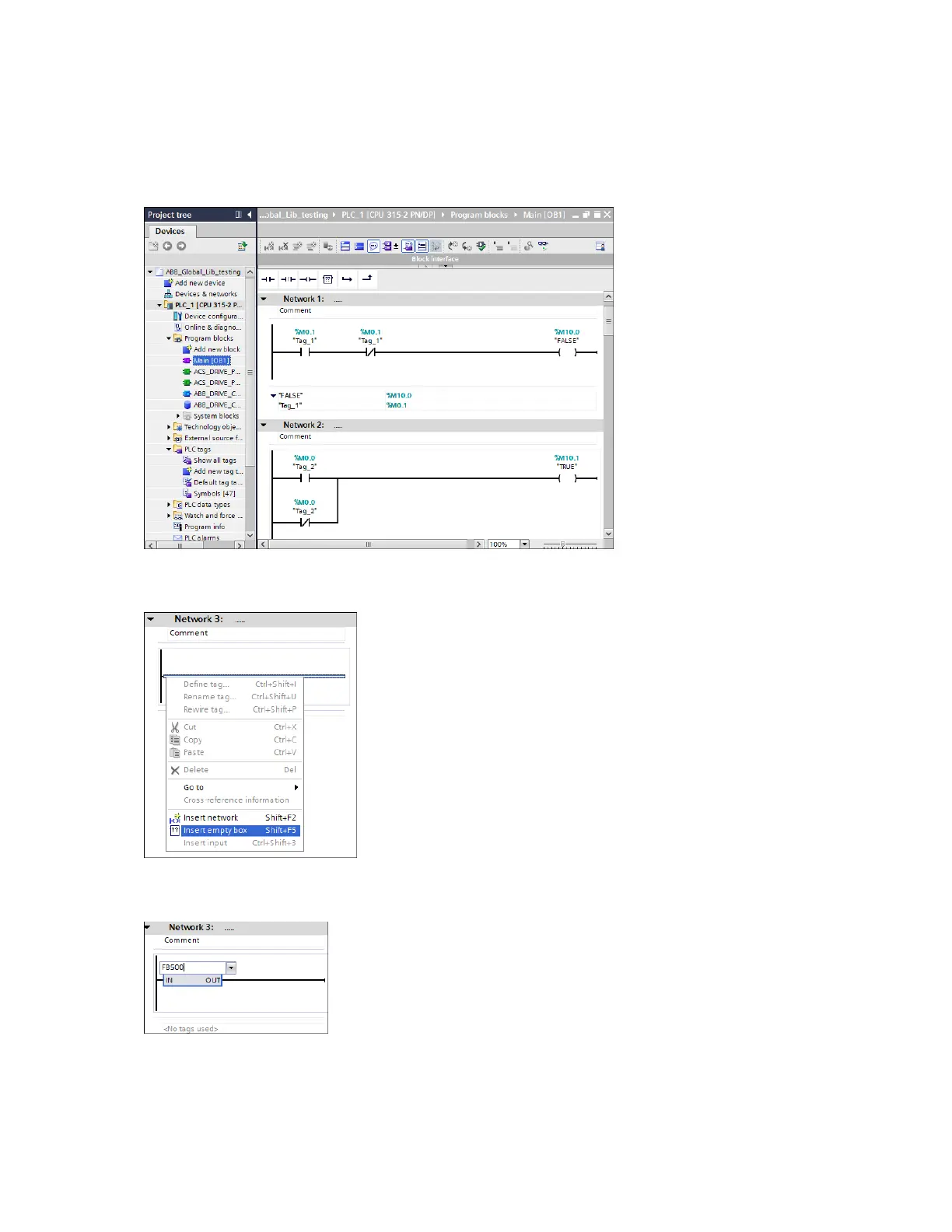

Figure 93 Logic TRUE/FALSE
2. Right-click in the next free network and choose Insert empty box.
Figure 94 Inserting empty box
3. Write FB500 in the block field to create an instance of FB500.
Figure 95 Instance of FB500

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
