ABB ACS880 Series Quick Start Up Guide

73
Configuring S7-300 PLC
To configure TIA Portal with the PLC and ABB Drive libraries, follow these steps:

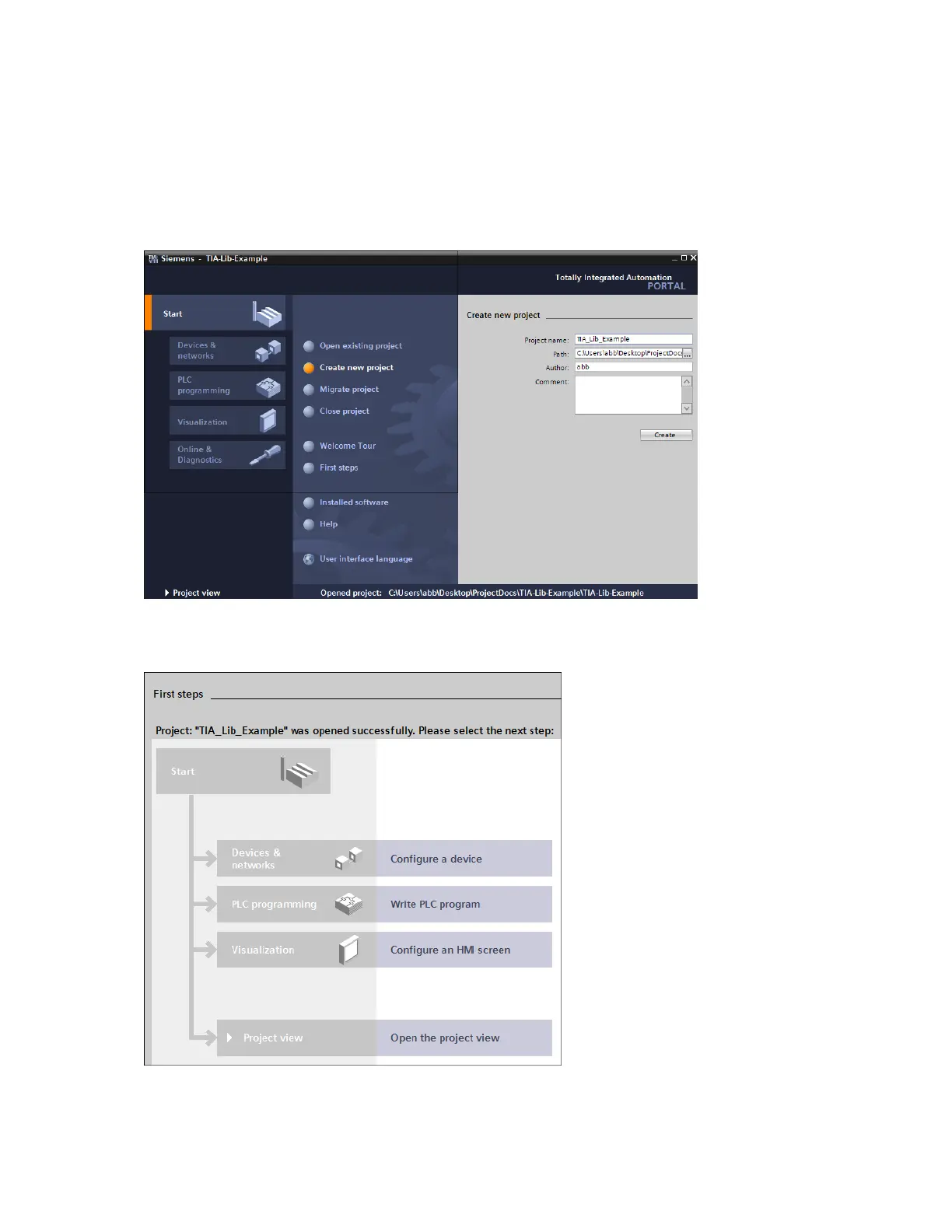

1. Launch TIA Portal V11.
2. Click Create new project, enter the project name and path and then click Create.
Figure 51 New project
3. In the Start options, click Configure a device.
Figure 52 Configure device

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
