ABB ACS880 Series Quick Start Up Guide

81
PLC libraries for S7-300
Adding ABB drives to PROFIBUS DP line
1. Launch TIA portal and click Open the project view in the Start options.
Note: After installing GSD files, ABB drives are added to the hardware catalog of TIA portal.
2. In the Project tree pane, double-click Device & networks.

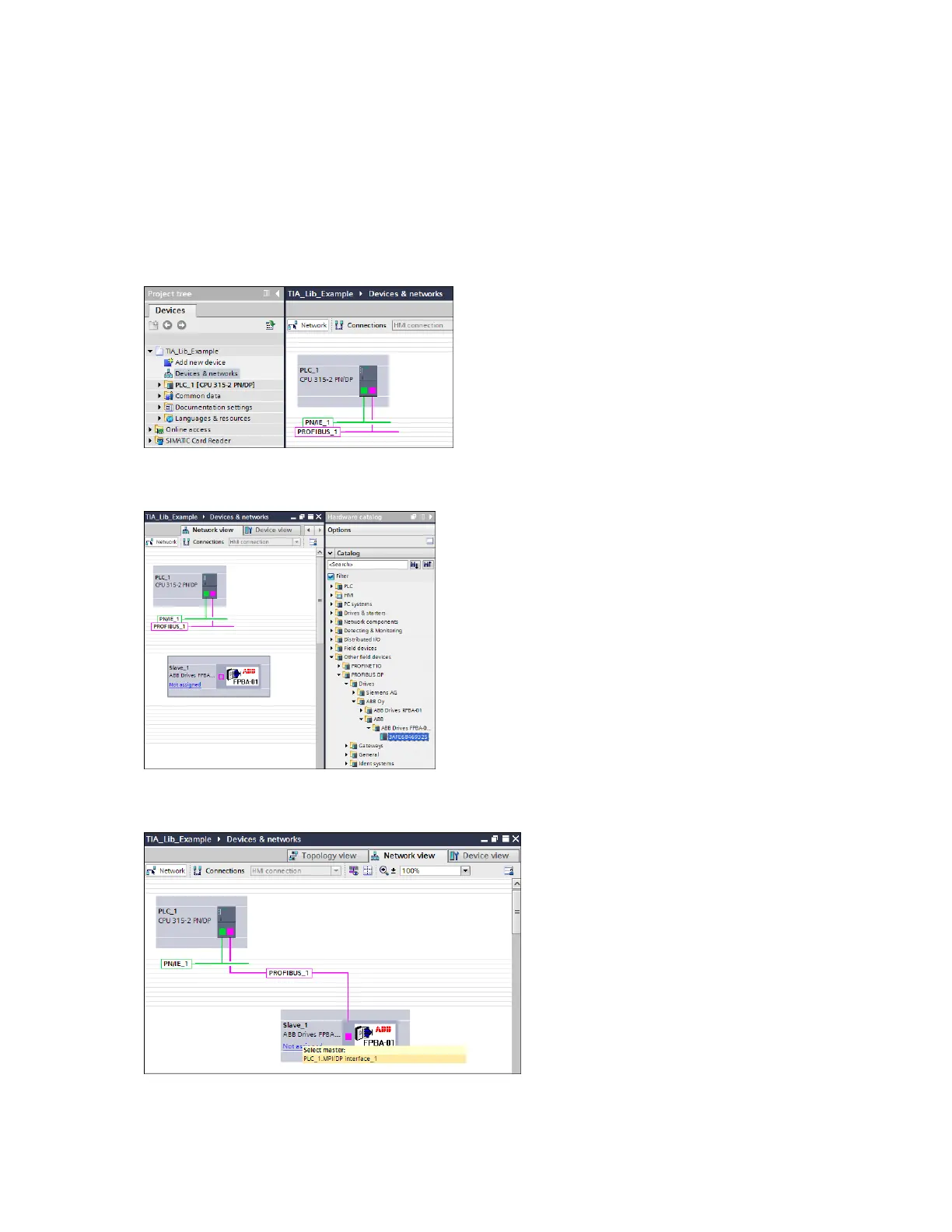

Figure 65 Devices and network
3. From the hardware catalog pane, drag and drop the required ABB Drive to the PLC.
Figure 66 ABB Drive
4. In the ABB drive, connect PLC to the PROFIBUS interface.
Figure 67 Assign to PLC

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
