Hardware configuration
In this example, a CPU 319F-3 PN/DP with integrated PROFIBUS DP and PROFINET IO interface is
used. An ABB ACS850 drive with FPBA-01 PROFIBUS DP module is connected to the PLC via the
PROFIBUS DP interface.
Starting a new project

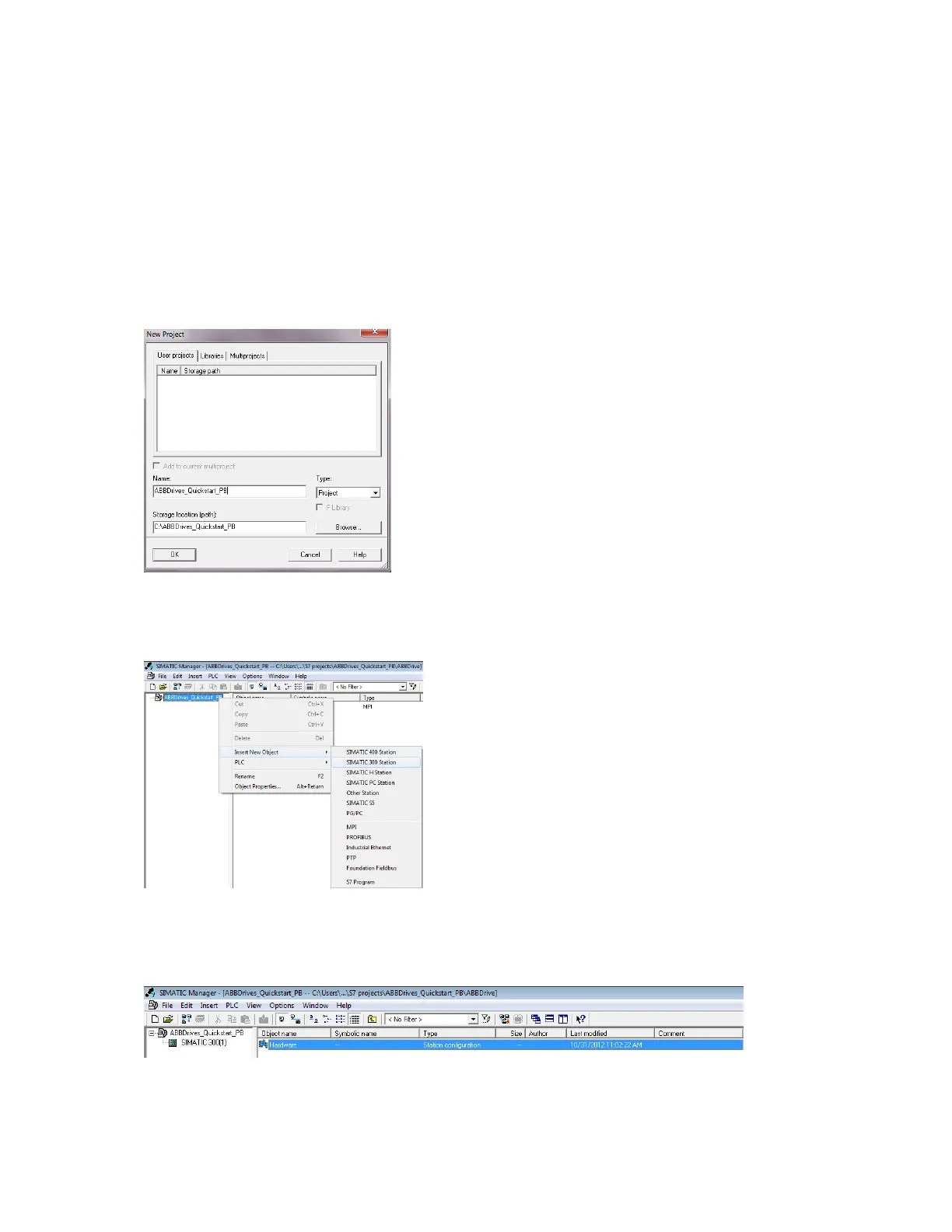

1. In the main menu, navigate to File → New to start a new project.
2. Give name and location to the project.
Figure 3 New project
3. Right-click on the project and navigate to Insert New Object → SIMATIC 300 Station to insert a
station to the project.
Figure 4 New project
4. Expand the project tree, click the SIMATIC station and double-click Hardware.
The HW Config window is displayed.
Figure 5 Hardware configuration

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
