4.4.1. Replacement of shaft and bearings, tilthouse
Location of shaft and bearings
The tilthouse is located in the front part of the upper arm, linked to the upper arm with a shaft,
as shown in the figure below.
A more detailed view of the component and its position may be found in section Upper arm,
exploded view on page 217 in part 2 of the Product manual.

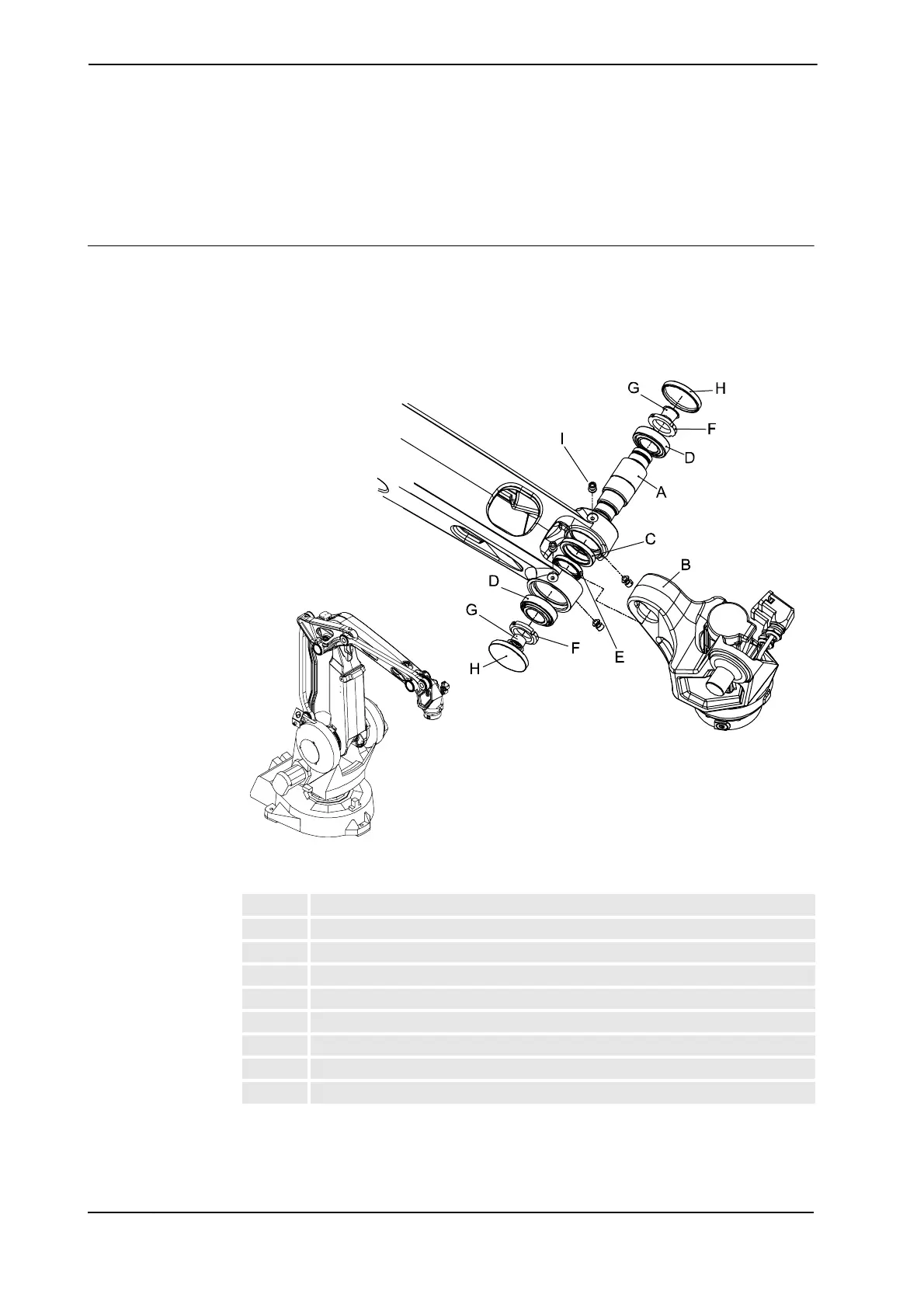

xx0500002583
A Shaft, tilthouse
B Tilthouse
C Sealing ring
D Taper roller bearing (2 pcs)
E Sealing ring with dust lip
F Lock nut (2 pcs)
G Protection hood (2 pcs)
H VK cover (2 pcs)
I M6 screws, including washers (4 pcs)
