3.4.3. Replacement of SMB battery
833HAC026048-001 Revision: A
© Copyright 2006-2008 ABB. All rights reserved.
3.4.3. Replacement of SMB battery
Location of SMB battery

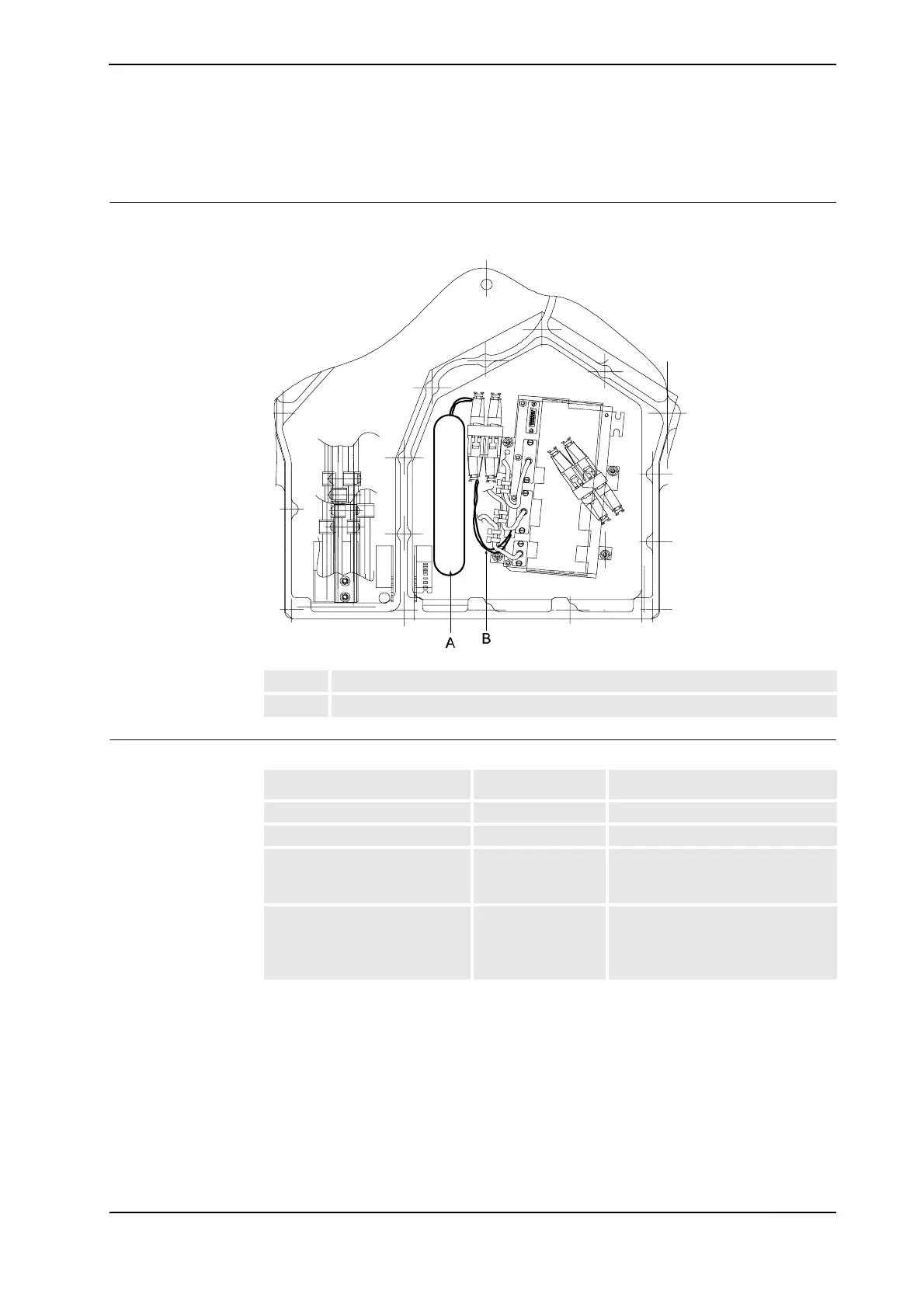

The SMB battery is located inside the robot base, as shown in the figure below.
xx0300000067
Required equipment
A SMB battery
B SMB battery cable
Equipment Spare part no. Note
Battery pack 3HAC16831-1 Lithium battery.
Gasket, cover 3HAC3200-1 Always replace with a new one!
Standard toolkit The contents are defined in section
Standard toolkit on page 190, in part
2 of the Product manual.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
These procedures include
references to the tools required.
