4 Repair
4.6.1. Replacement of SMB unit
1433HAC026048-001 Revision: A
© Copyright 2006-2008 ABB. All rights reserved.

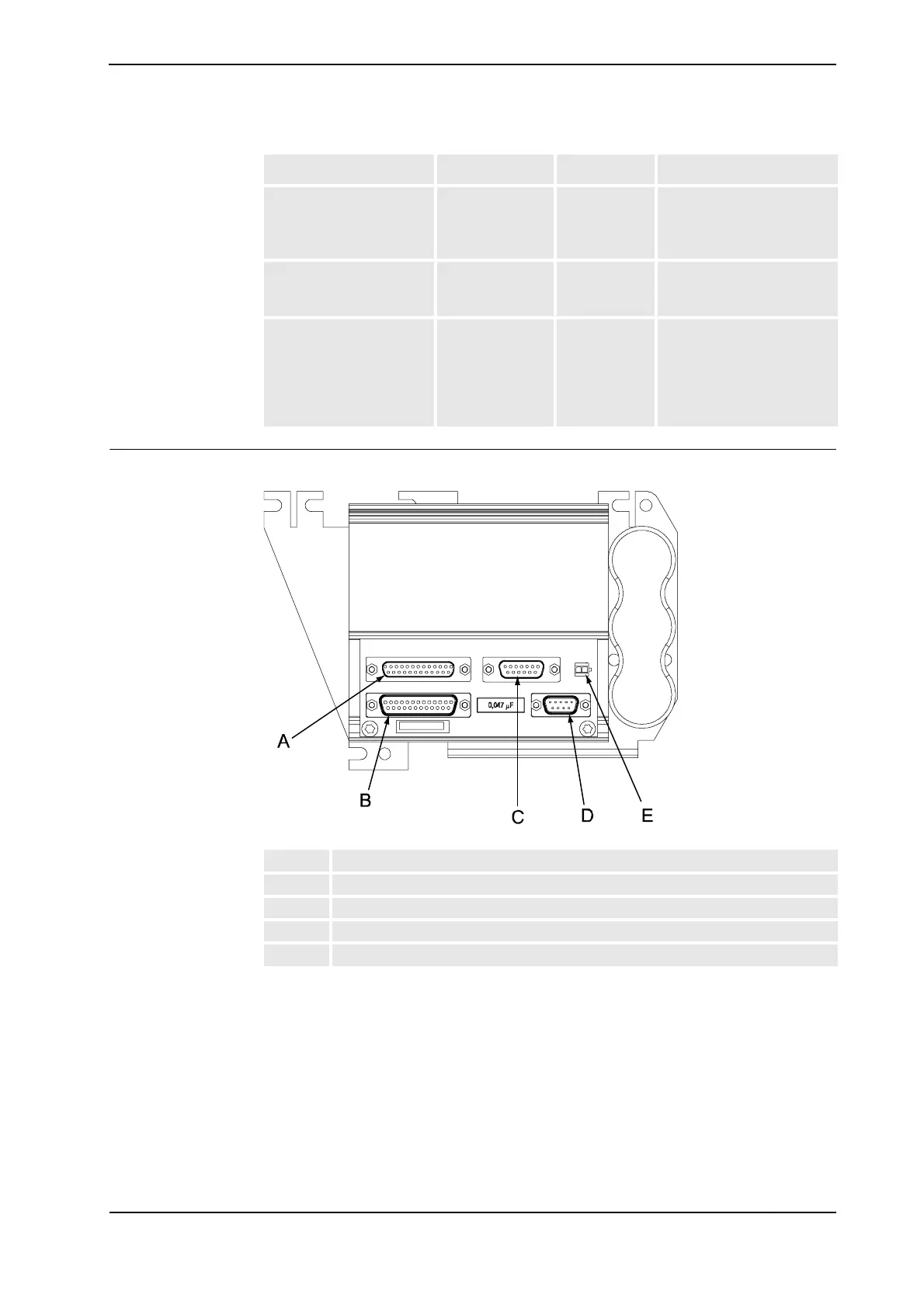

SMB unit, layout
xx0600002645
Standard toolkit The contents are defined in
section Standard toolkit on
page 190, in part 2 of the
Product manual.
Circuit Diagram - See chapter Circuit diagram
in the Product manual,
reference information.
Other tools and
procedures may be
required. See references
to these procedures in the
step-by-step instructions
below.
These procedures include
references to the tools
required.
Equipment Spare part no. Art. no. Note
A Connector R2.SMB4-6
B Connector R2.SMB1-3
C Connector R2.SMB1-2 (external axis)
D Connector R2.SMB
E Connector R2.G (battery unit)
Continued
Continues on next page
