3.3 Inspection activities
3.3.1 Inspecting the oil level in axis-1 gearbox
Location of gearbox

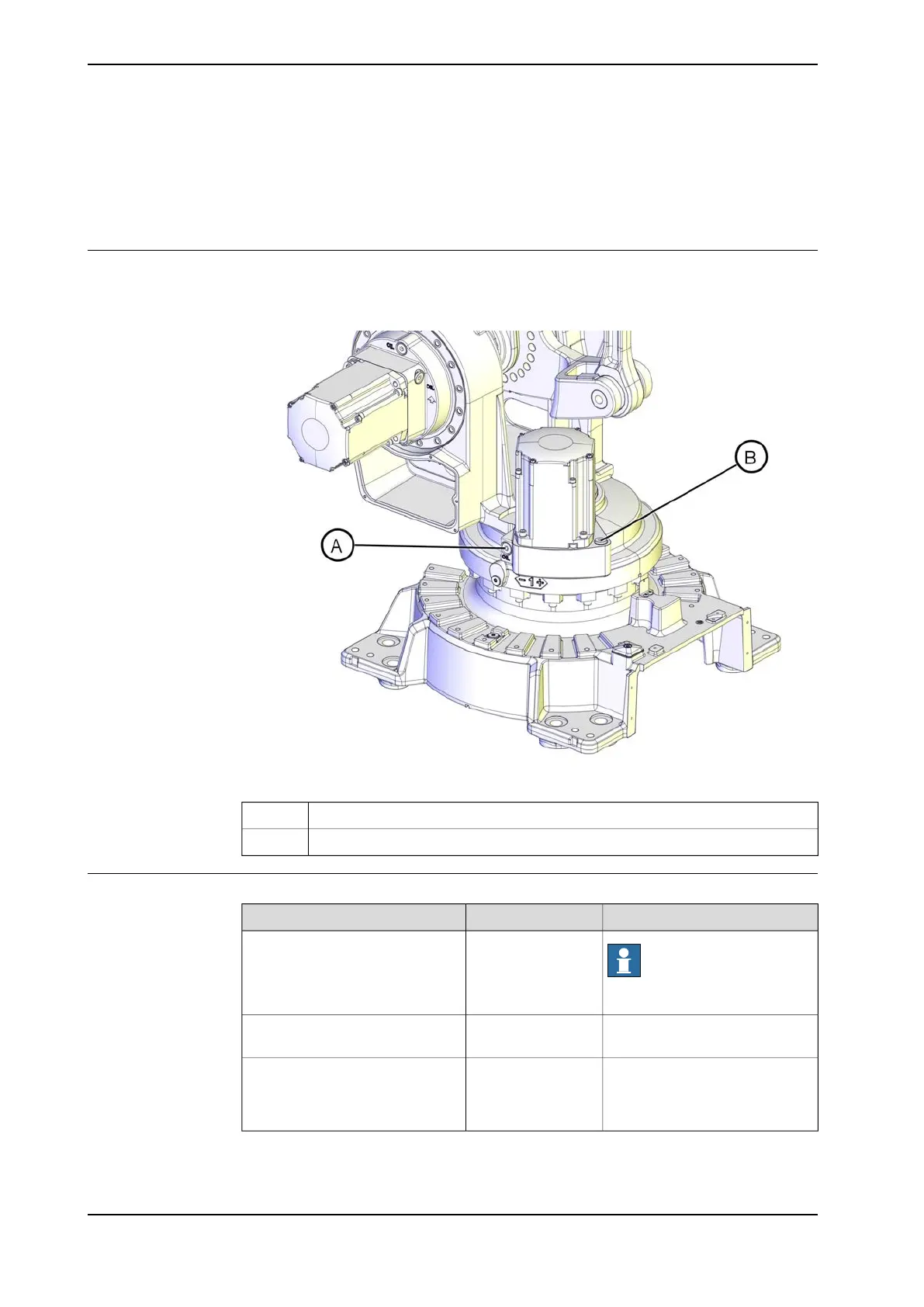

The axis-1 gearbox is located between the frame and base. See oil plugs in the
following figure.
xx1000001294
Oil plug, inspectionA
Oil plug, filingB
Required equipment
NoteArt. no.Equipment
Note
Do not mix with other oils!
See Type and
amount of oil in
gearboxes on
page 121.
Lubricating oil
Content is defined in section
Standard tools on page 383.
-Standard toolkit
These procedures include refer-
ences to the tools required.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
Continues on next page
102 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
3 Maintenance
3.3.1 Inspecting the oil level in axis-1 gearbox
