2.3.4 Lifting the base plate
Required equipment
NoteArticle numberEquipment
3 pcs3HAC14457-4Lifting eye, M16
Length: approx. 2 mLifting slings

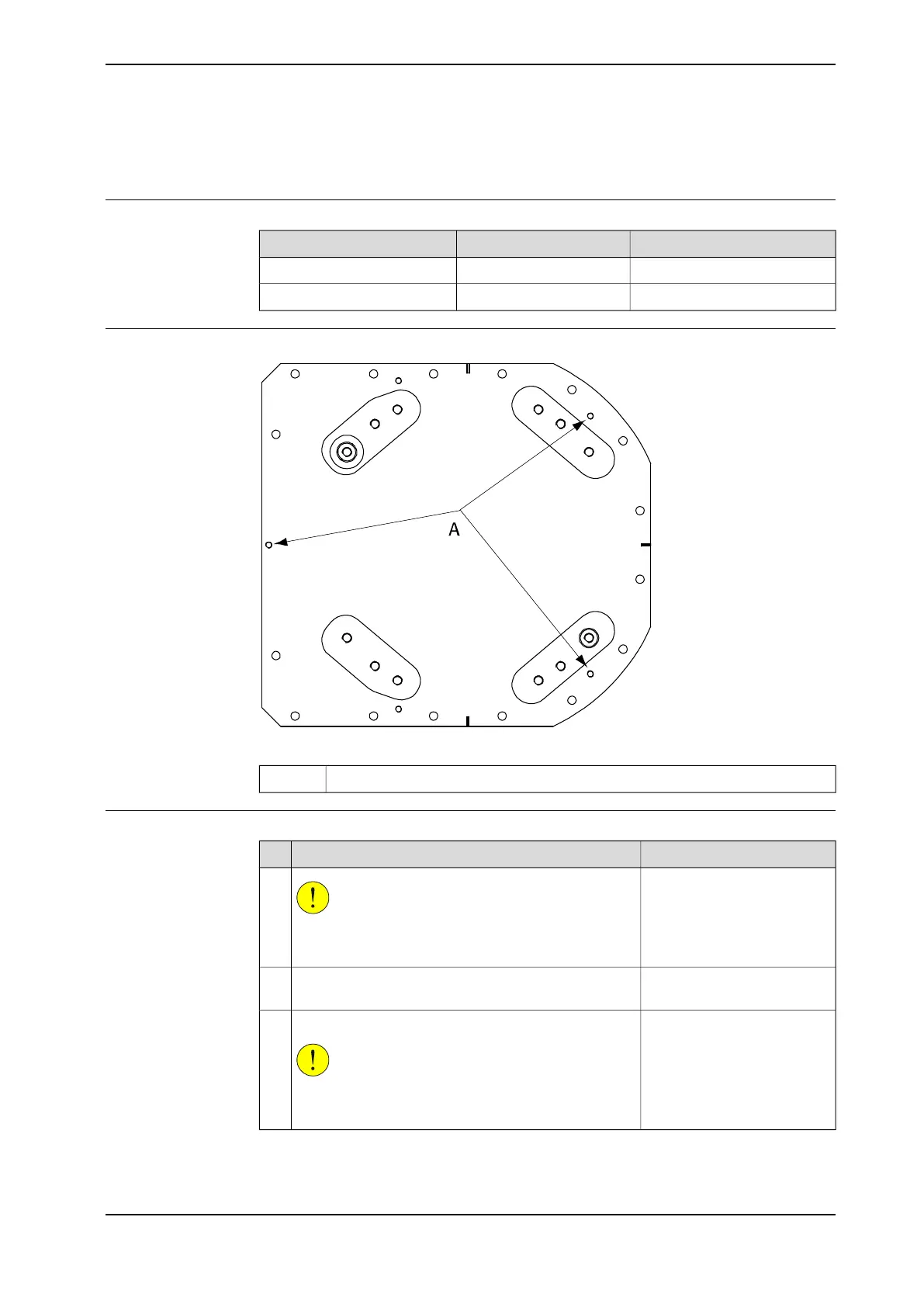

Hole configuration
xx0200000096
Attachment holes for lifting eyes (x3)A
Lifting, base plate
NoteAction
CAUTION
The base plate weighs 353 kg. All lifting accessories
used must be sized accordingly.
1
Shown in figure Hole configur-
ation on page 65.
Fit lifting eyes in specified holes.2
Fit lifting slings to the eyes and to the lifting accessory.
CAUTION
Lift and move the base plate very slowly. If the base
plate starts to swing it is a risk for injuries or damage.
3
Product manual - IRB 460 65
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
2 Installation and commissioning
2.3.4 Lifting the base plate
