3.3.8 Inspection, dampers
Location of dampers

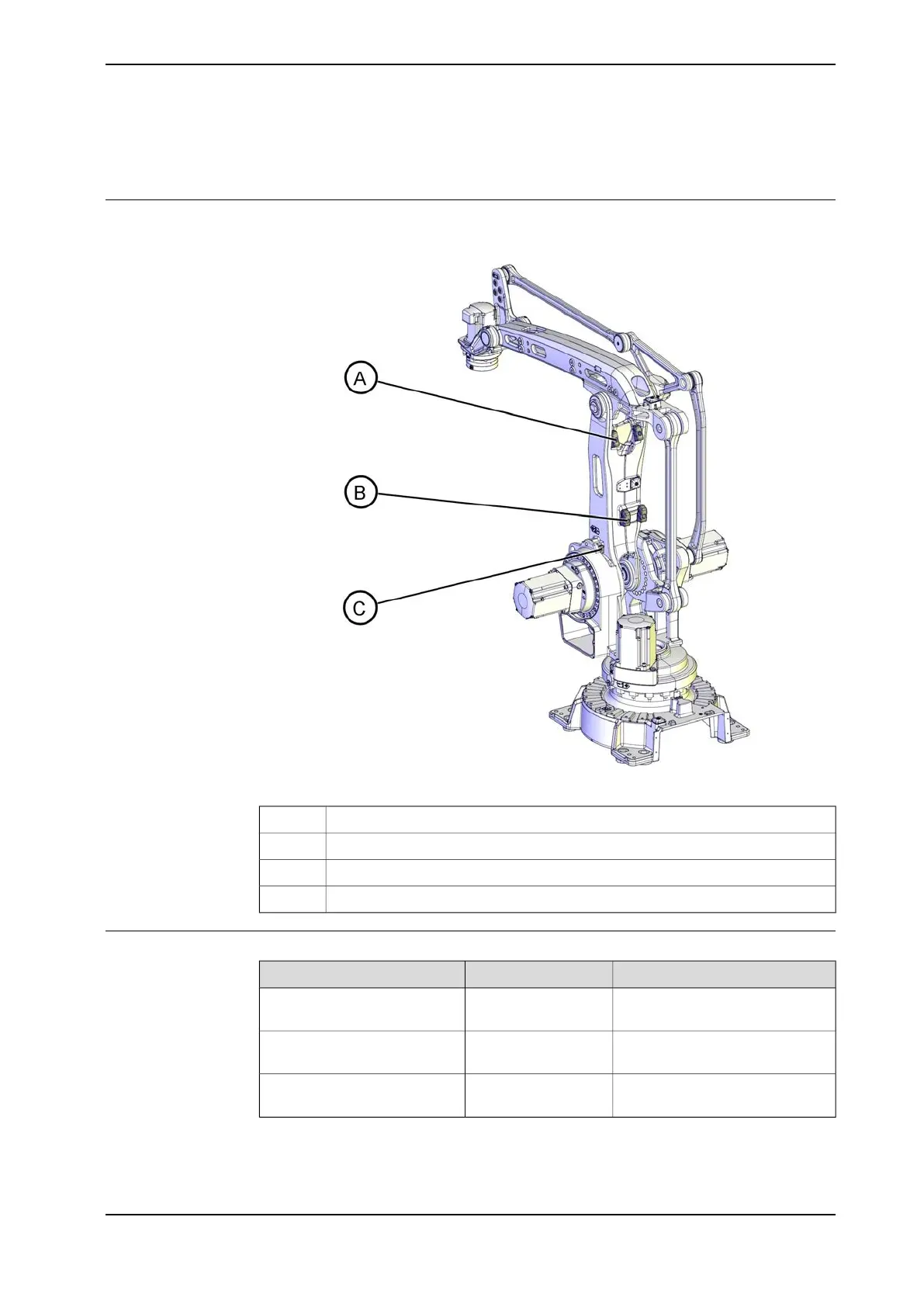

This figure shows the location of dampers.
xx1000001345
Damper, lower arm, upper (2 pcs)A
Damper, lower arm, lower (2 pcs)B
Damper, axis 2 (2 pcs)C
Damper, axis 3 (2 pcs). Not visible in this view.-
Required equipment
NoteArt.no.Equipment
To be replaced if damaged.See Spare parts on
page 389.
Damper lower arm, upper
To be replaced if damaged.See Spare parts on
page 389.
Damper lower arm, lower
To be replaced if damaged.See Spare parts on
page 389.
Damper axis 2, 3
Continues on next page
Product manual - IRB 460 117
3HAC039842-001 Revision: P
