ABB IRB 460 Series User Manual

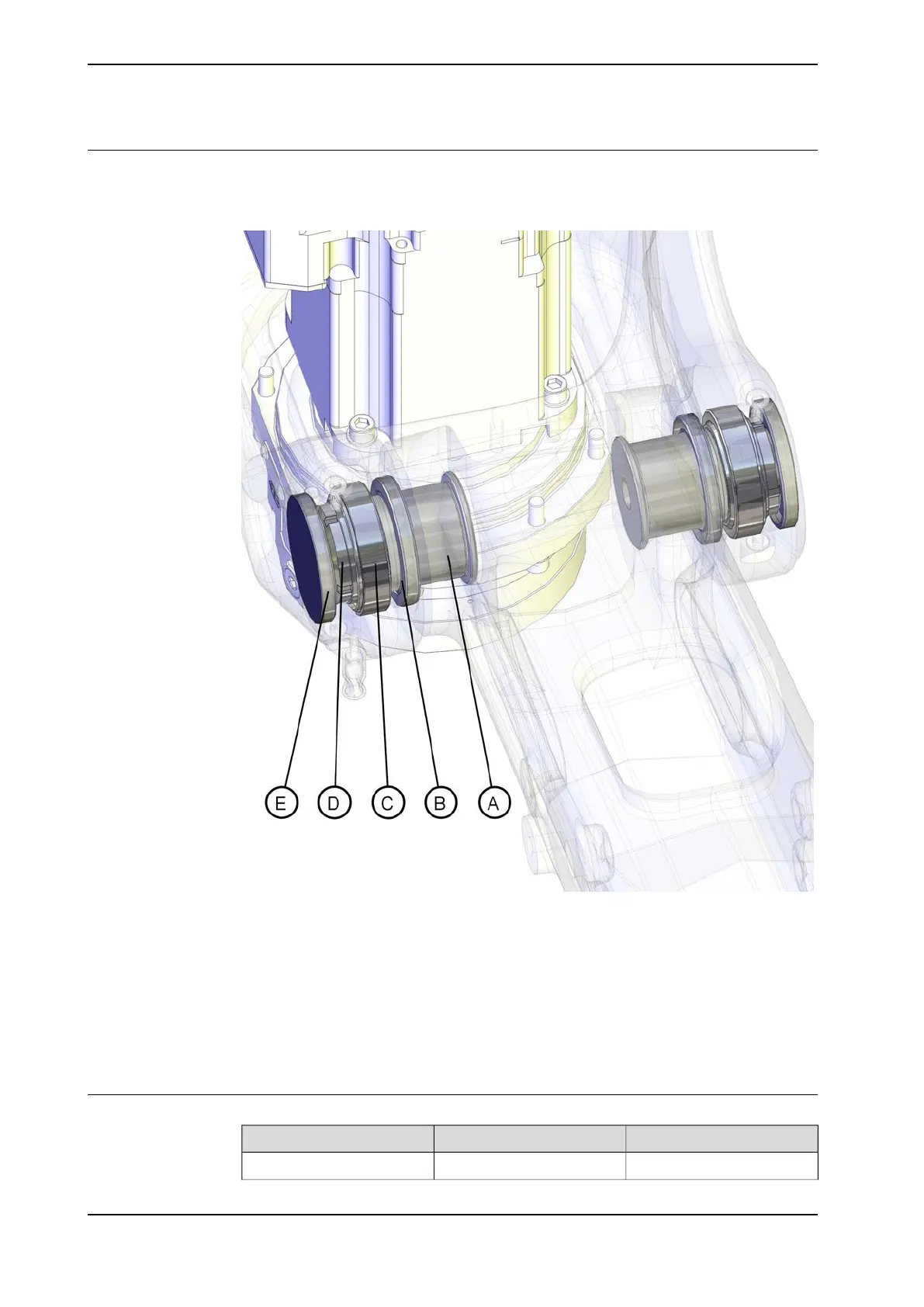

X-ray view of the assembly of the tilthouse unit
The figure shows a X-ray view of how the tilthouse unit is fitted to the upper arm.
Both sides looks the same.
xx1100000216
A Shaft
B Radial sealing
C Bearing
D Lock nut
E VK cover 65x8
VK cover 19x6 (Inside VK cover 65x8), not shown in this figure
Required equipment
NoteArt.no.Equipment, etc.
VK 19x6 (2 pcs)Spare parts on page 389VK cover
Continues on next page
192 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.2 Replacing the tilthouse unit
Continued
