2.3.2 Lifting robot with roundslings
General
The robot can be lifted with roundslings according to this section.
Sling specification
Length / NoteLifting capacityQtySling type
2 m2 000 kg3 pcsRoundsling, robot
2.5 m2 000 kg2 pcs

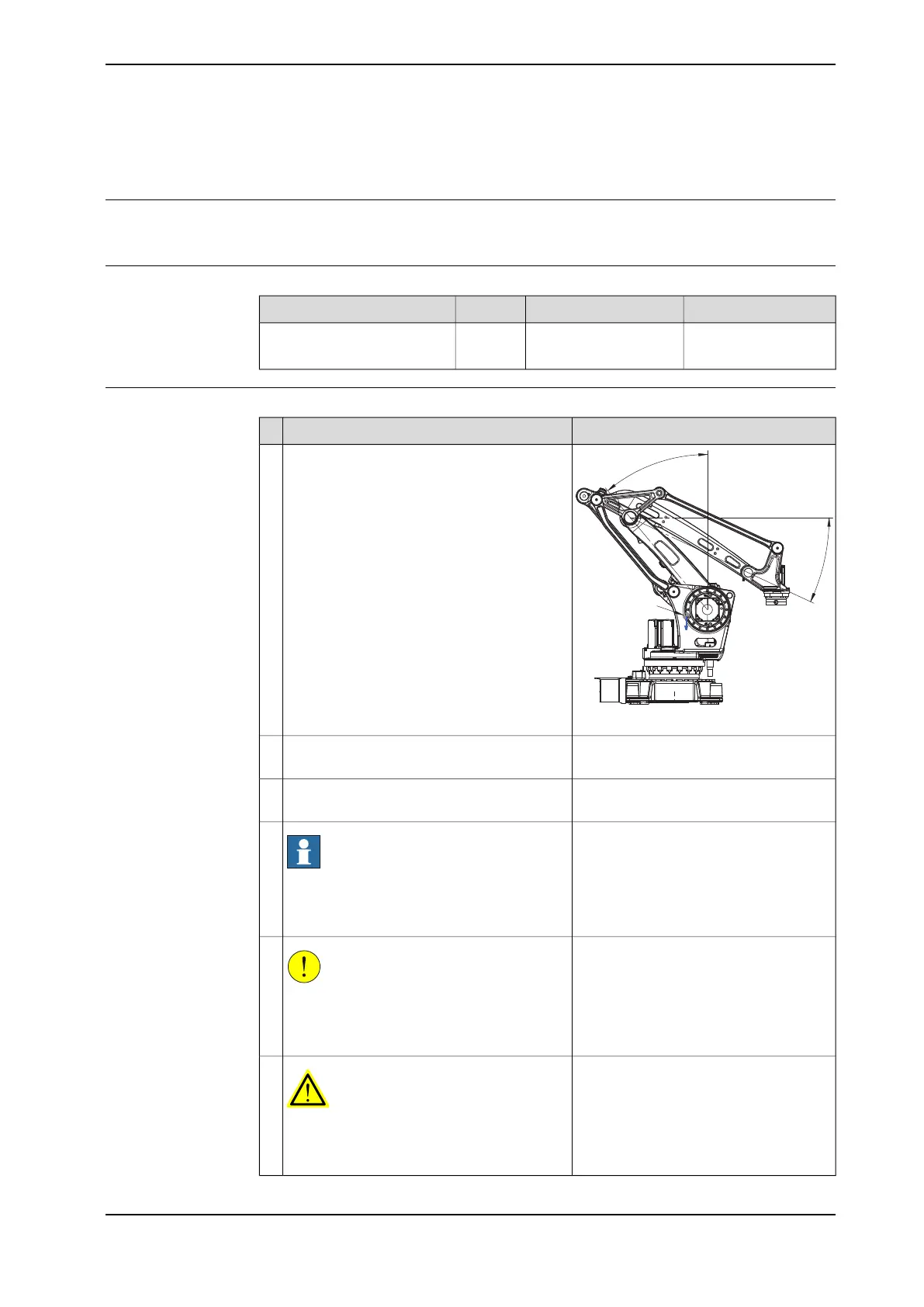

Lifting with roundslings
NoteAction
40°
25°
m
xx1000001155
Position robot in a secure transport position.1
Shown in figure Attachment points on
page 62.
Attach lifting eye bolts in the rear M20 holes.2
Attach roundslings to robot according to fig-
ure Attachment points on page 62.
3
Note
Make sure that the roundslings do not lie
against sensitive parts, for example harness
and customer equipment!
4
CAUTION
The IRB 460 robot weighs 925 kg.
All lifting accessories used must be sized
accordingly!
5
WARNING
Personnel must not, under any circum-
stances, be present under the suspended
load!
6
Continues on next page
Product manual - IRB 460 61
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
2 Installation and commissioning
2.3.2 Lifting robot with roundslings
