4.4.3 Replacing the upper arm

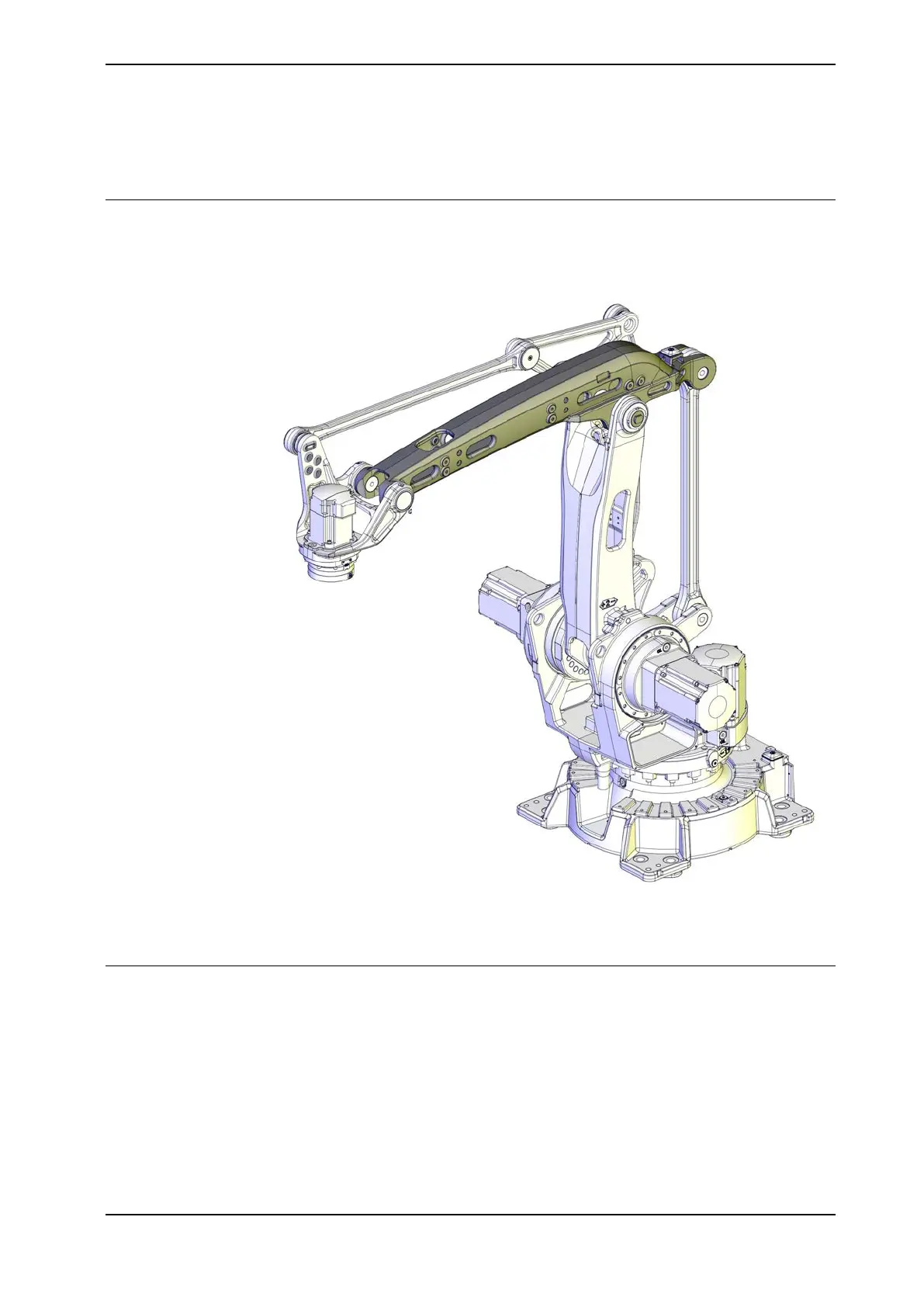

Location of the upper arm
The upper arm is located as shown in the figure.
xx1100000262
Different versions of the sealing structure
Robots that are delivered from October 2012 and forward has a new sealing
structure at the link that consists of a support ring, o-ring and radial sealing.
Robots delivered before October 2012 has a sealing structure that consists of a
POM sealing, if not updated with the new sealing structure according to above.
The removal and refitting procedures describe both versions of sealing structures.
The steps that differ are marked with information about which sealing structure
the step is valid for.
Continues on next page
Product manual - IRB 460 209
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.3 Replacing the upper arm
