3.4.4 Changing oil, gearbox axis 6

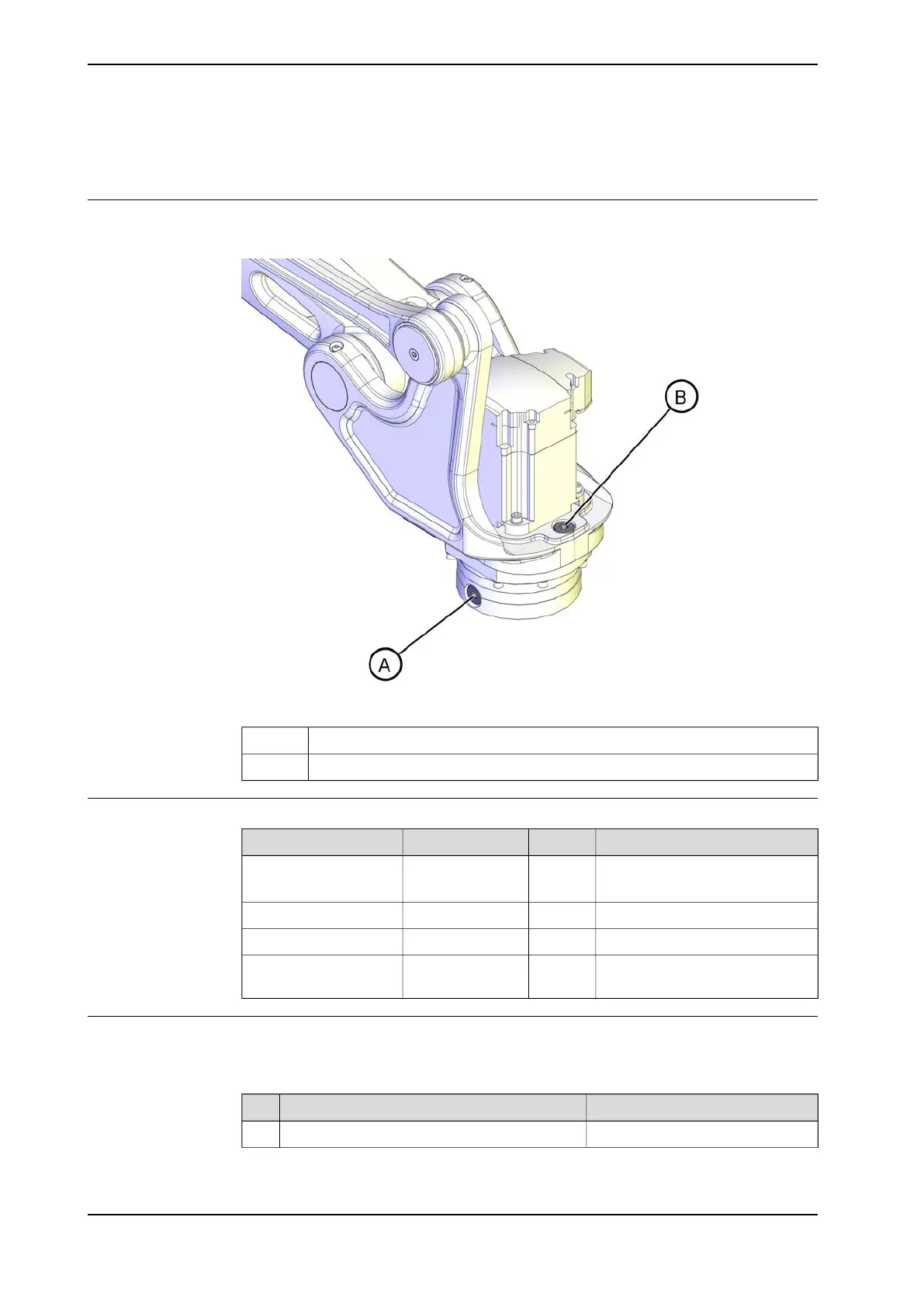

Location of oil plugs
Gearbox axis 6 is located in the center of the tilt house unit.
xx1000001353
Oil plug, drainingA
Oil plug, fillingB
Required equipment
NoteAmountArt. no.Equipment, etc.
Kyodo Yushi TMO 150300 ml3HAC032140-001Lubrication oil
Do not mix with other oil types!
3HAC021745-001Oil exchange equipment
Vessel capacity: 400 ml.Oil collecting vessel
Content is defined in section
Standard tools on page 383.
-Standard toolkit
Draining, oil
Use this procedure to drain oil from gearbox axis 6.
When using oil change equipment, follow the instructions enclosed with kit.
NoteAction
Put tilt house in a suitable position.1
Continues on next page
130 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
3 Maintenance
3.4.4 Changing oil, gearbox axis 6
