4.3.4 Replacing the brake release board
Location of brake release board

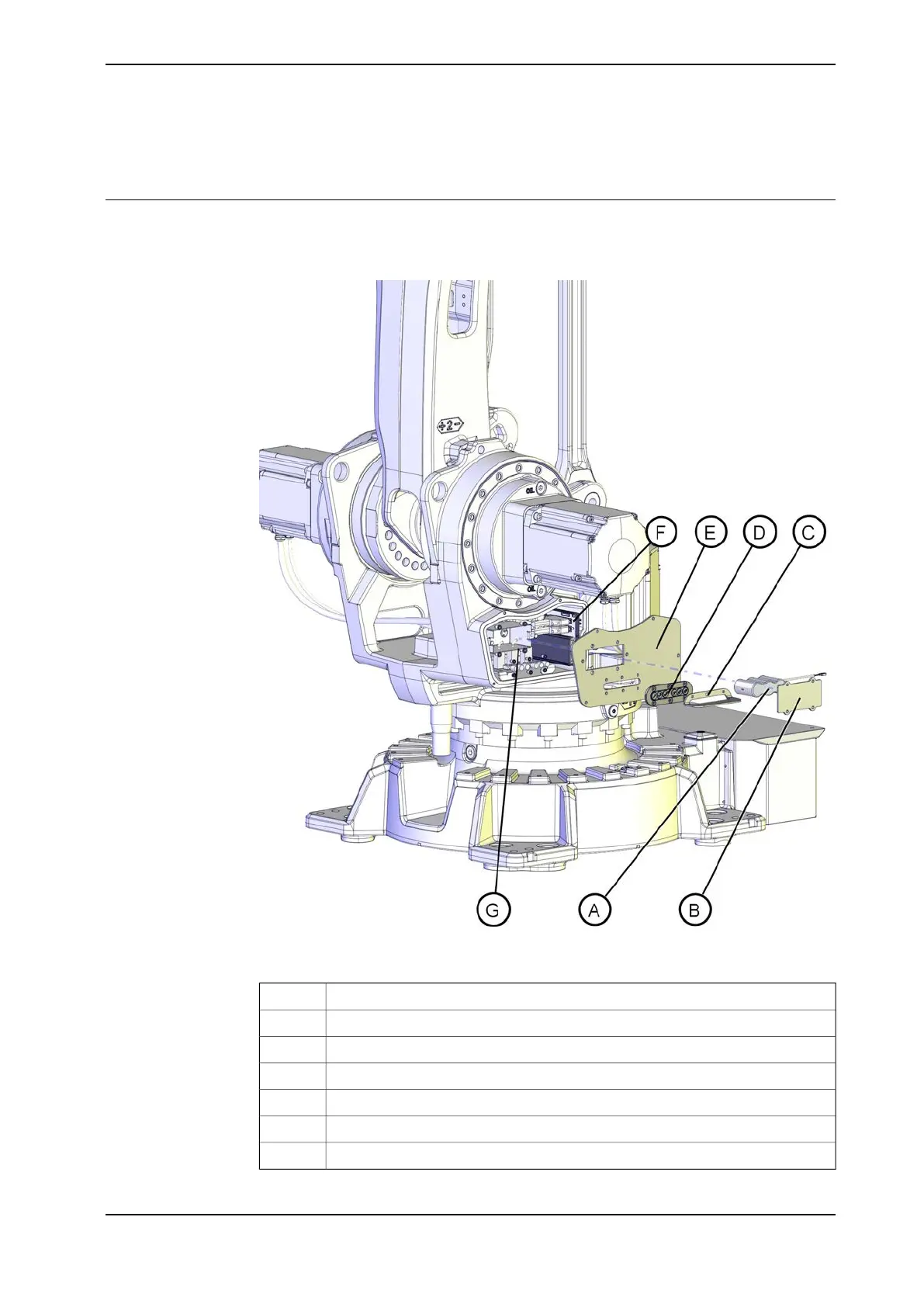

The brake release unit is located together with the SMB unit on the left hand side
of the frame, right next to the gearbox, axis 2, as shown in figure below.
xx1100000105
Battery pack (2-pole battery contact)A
CoverB
BU button guard plateC
Push button guardD
Cover SMBE
SMB unitF
Brake release unitG
