3.4.2 Changing oil, axis-1 gearbox
Location of oil plugs

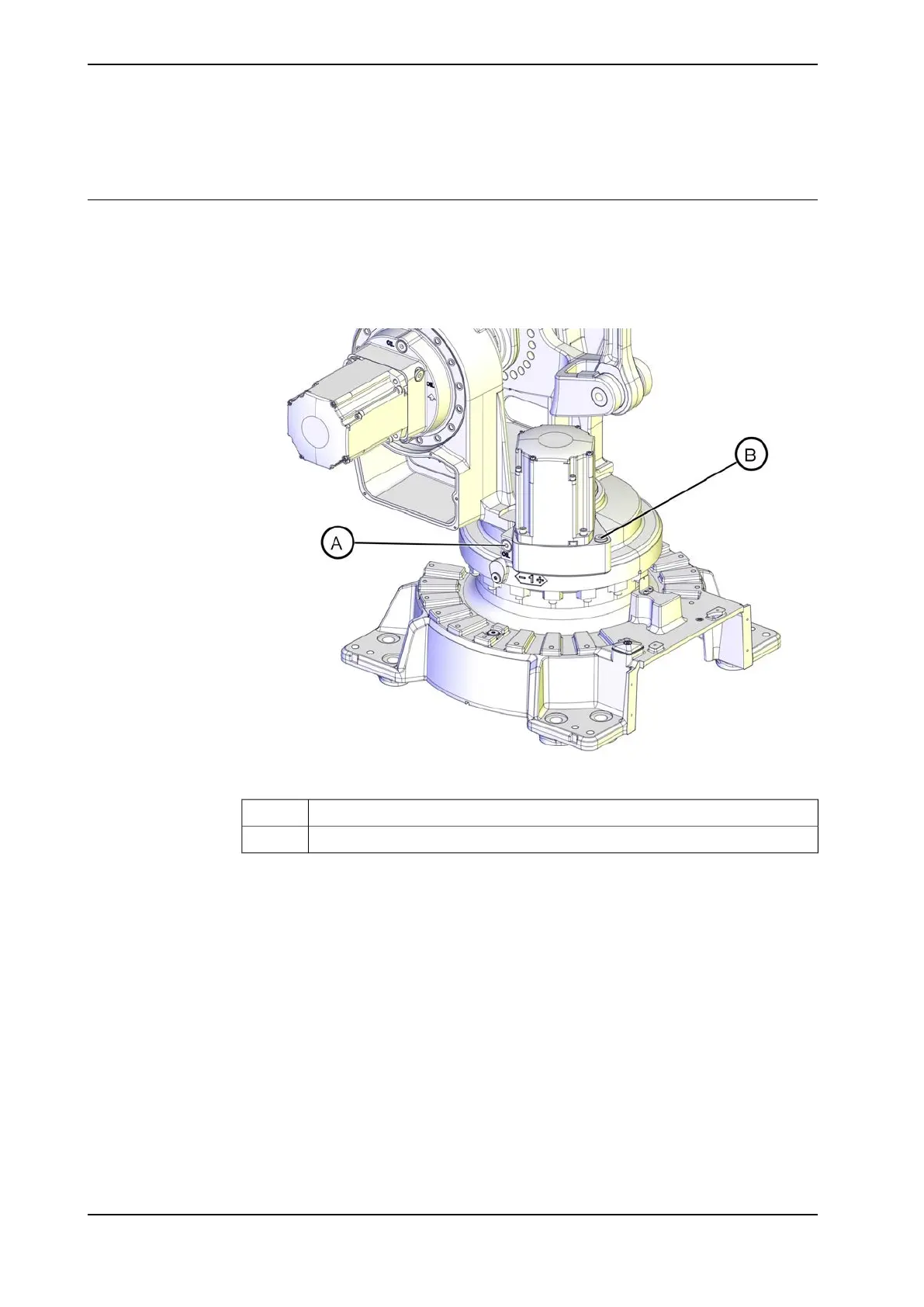

The axis-1 gearbox is located between the frame and base. See oil plugs in the
following figure.
falseThe oil is drained through a hose, which is located at the rear of the robot
base.
xx1000001294
Oil plug, inspectionA
Oil plug, fillingB
Continues on next page
122 Product manual - IRB 460
3HAC039842-001 Revision: P
