Customer connections on manipulatorInstallation and Commissioning
24 Product Manual IRB 640
3.1.2 Connections on upper arm with CanBus.

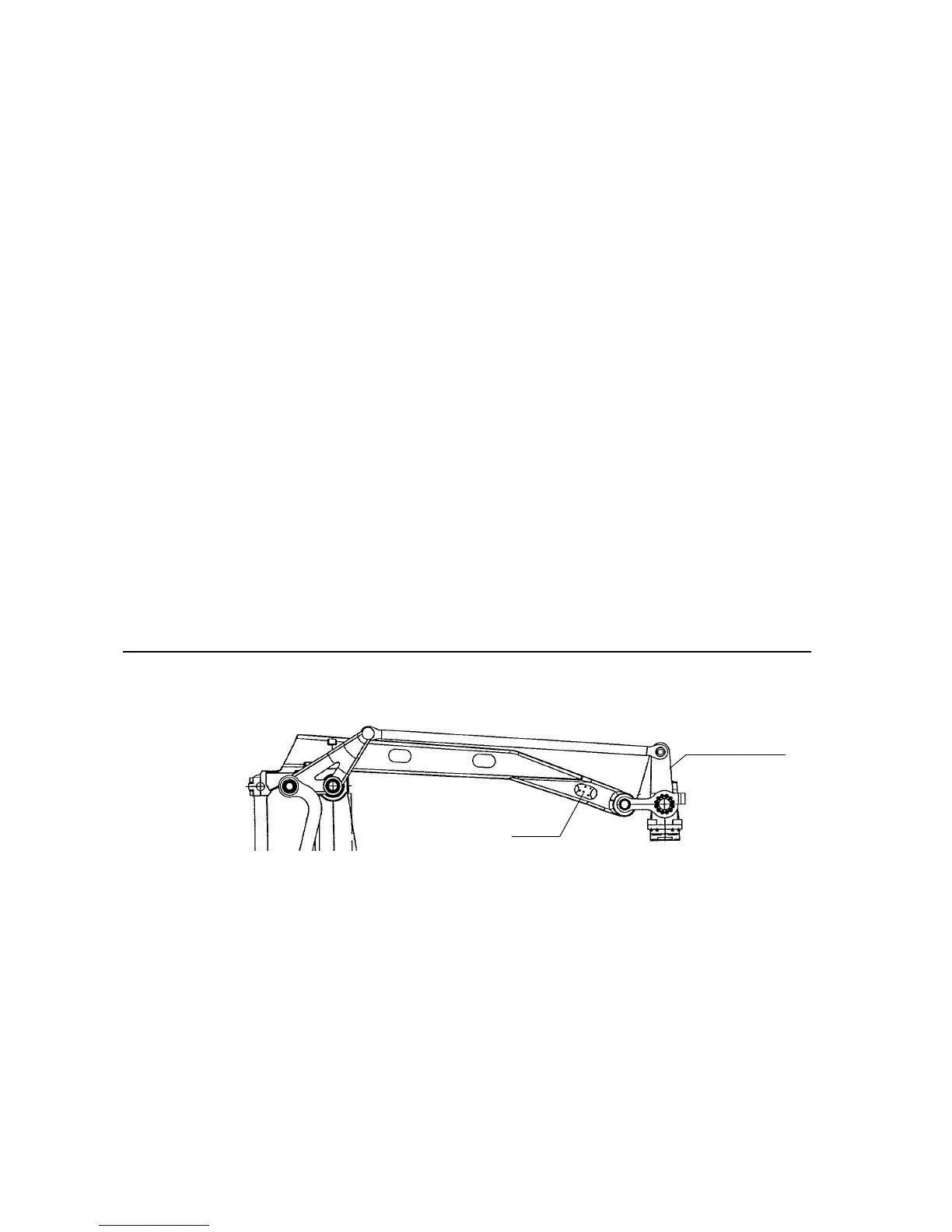

Figure 17 Customer connections on upper arm.
CSC XT5.1.3 R1.CP/CS.D5 R3.CS.C
CSD XT5.1.4 R1.CP/CS.A6 R3.CS.D
CSE XT5.1.5 R1.CP/CS.B6 R3.CS.E
CSF XT5.1.6 R1.CP/CS.C6 R3.CS.F
CSG XT5.1.7 R1.CP/CS.D6 R3.CS.G
CSH XT5.1.8 R1.CP/CS.A7 R3.CS.H
CSJ XT5.1.9 R1.CP/CS.B7 R3.CS.J
CSK XT5.1.10 R1.CP/CS.C7 R3.CS.K
CSL XT5.1.11 R1.CP/CS.D7 R3.CS.L
CSM XT5.1.12 R1.CP/CS.A8 R3.CS.M
CSN XT5.2.13 R1.CP/CS.B8 R3.CS.N
CSP XT5.2.14 R1.CP/CS.C8 R3.CS.P
CSR XT5.2.15 R1.CP/CS.D8 R3.CS.R
CSS XT5.2.16 R1.CP/CS.A9 R3.CS.S
CST XT5.2.17 R1.CP/CS.B9 R3.CS.T
CSU XT5.2.18 R1.CP/CS.C9 R3.CS.U
CSV XT5.2.19 R1.CP/CS.D9 R3.CS.V
CSW XT5.2.20 R1.CP/CS.A10 R3.CS.W
CSX XT5.2.21 R1.CP/CS.B10 R3.CS.X
CSY XT5.2.22 R1.CP/CS.C10 R3.CS.Y
CSZ XT5.2.23 R1.CP/CS.D10 R3.CS.Z
Signal name Customer terminal
controller, see chapter 2
for Controler.
Customer contact on
manipulator base, R1
(cable not supplied)
Customer contact
on upper arm, R3
Power supply
CPF XT6.1 R1.CP/CS.1 R3.CP.F
CPJ XT6.2 R1.CP/CS.2 R3.CP.J
CPK XT6.3 R1.CP/CS.3 R3.CP.K
CPL XT6.4 R1.CP/CS.4 R3.CP.L
CPM XT6.5 R1.CP/CS.5 R3.CP.M
R3.CP/CS
Air R1/2”
R3.CB
