Installation and Maintenance AC Line Power Supply Requirements
292 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition
Line Power Cable
In accordance with international safety standards, the instrument has a
three-wire power cable. When connected to an appropriate AC power
receptacle, this cable earths the instrument cabinet. For the part number of
the power cable for your countryand instrument see “Accessories” on
page 319.
.

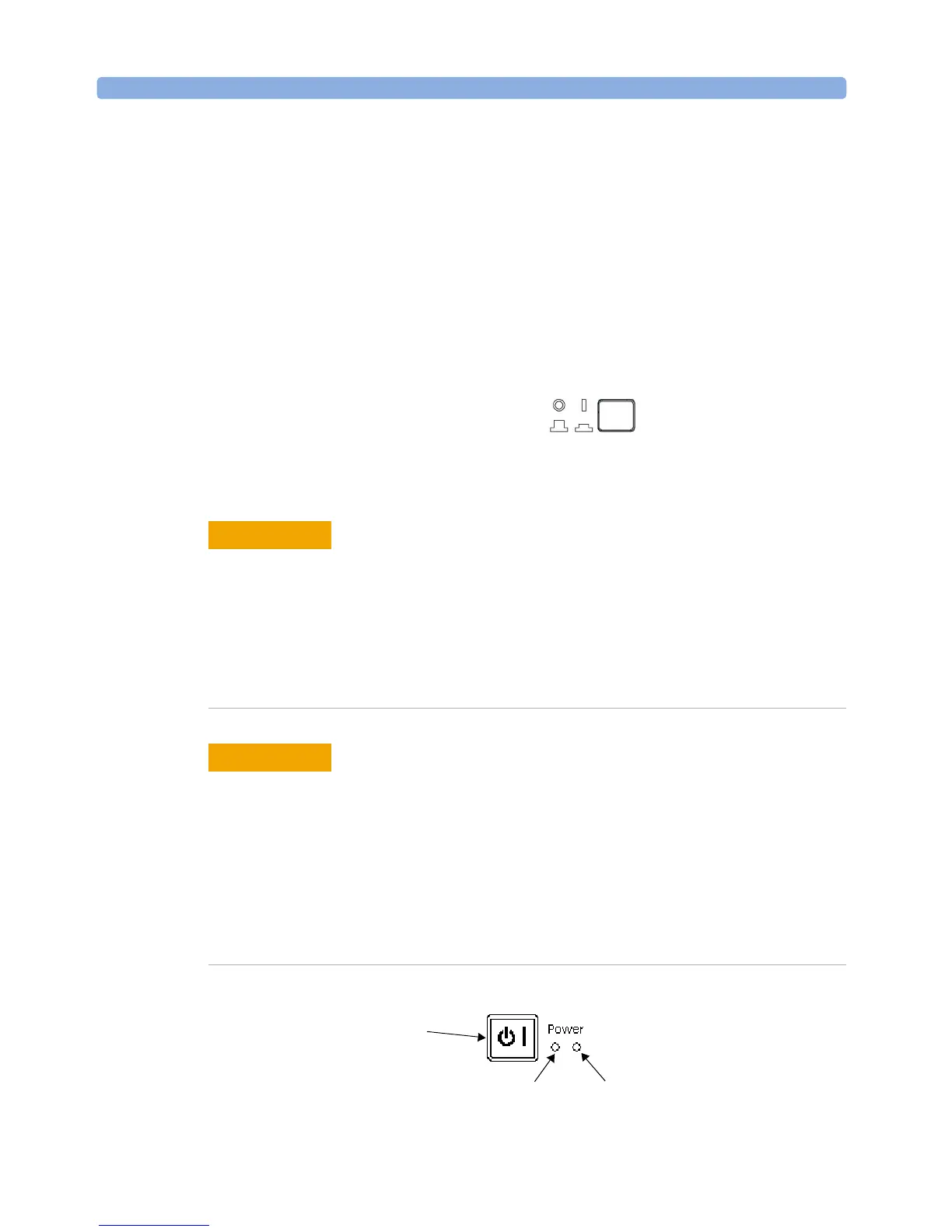

Figure 178 Agilent 8163A/B Lightwave Multimeter System Power Key
Figure 179 Agilent 8164A/B Lightwave Measurement System Power Key
If you need to turn off the power, unplug the instrument at the mains
or remove the power cable connector from the appliance coupler at
the rear of the instrument. For this reason, the power cable
connection should be easily accessible - allowing you to turn off the
power quickly. If the instrument is in a cabinet, it must be
disconnected from the line power by the system’s line power
switch.
Please note that the power key on the front panel of the
Agilent 8164A/B Lightwave Measurement System does not stop
the flow of power to the instrument. The power key allows you to
switch between stand-by mode and power-on mode.
When the green power-on LED is lit, you can use the instrument.
When the orange stand-by mode LED is lit, the Lightwave
Measurement System is in stand-by mode. Do not remove the
instrument covers - the power supply is still operating in stand-by
mode.
CAUTION
CAUTION
Power-on LED (green)
Stand-by mode LED (orange)
Power Key
