Chapter 10 315
CDMA Digital Modulation
cdma2000 Reverse Link Modulation for Component Test
The channel table editor now contains the an additional supplemental2 traffic channel.
The display shows that the total power is now at 1.37 dB. You can rescale the total channel power to 0 dB by
pressing
Adjust Code Domain Power > Scale to 0 dB.
Press
Return > Return.

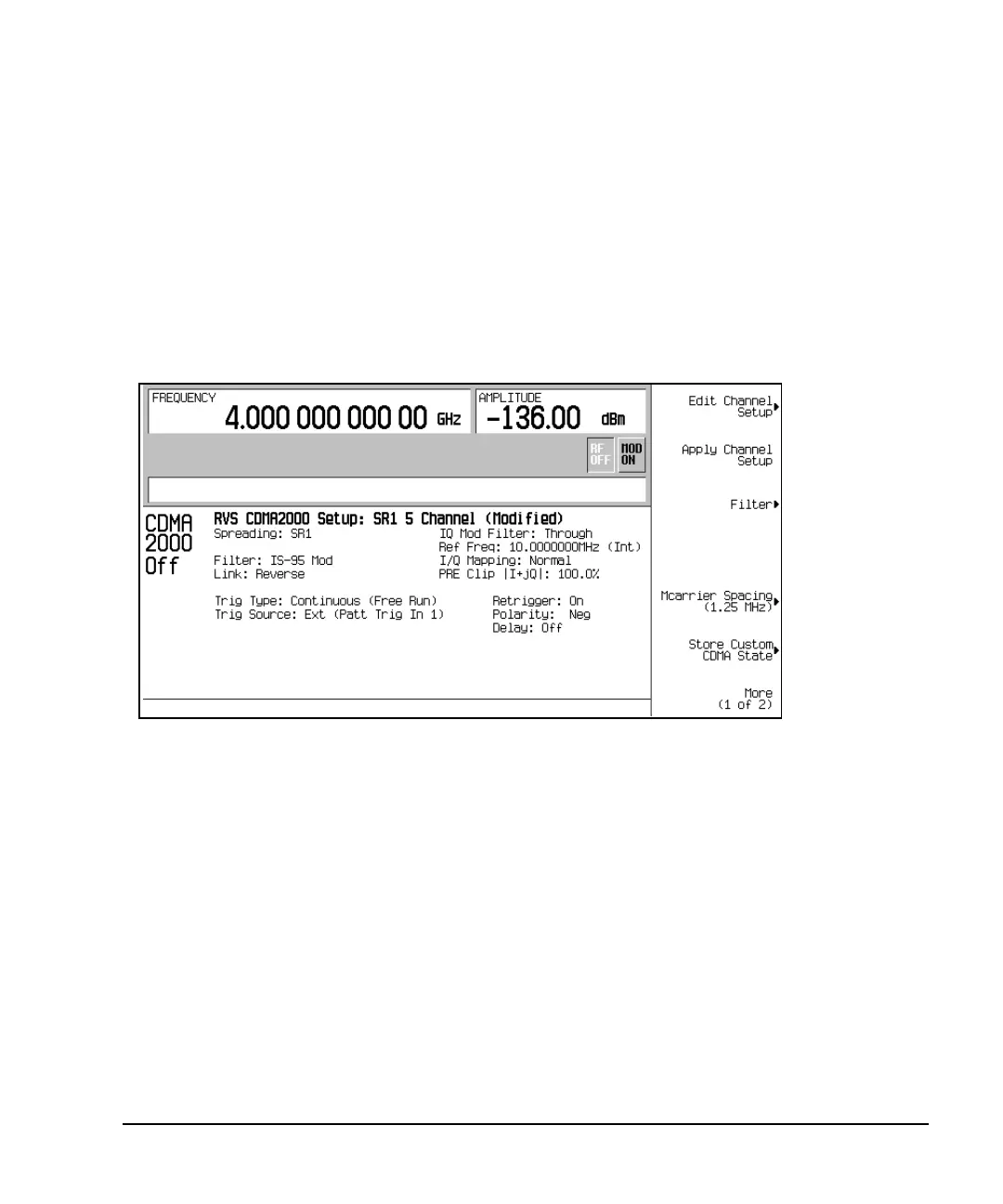

The text area displays the current configuration, RVS CDMA2000 Setup: SR1 5 Channel
(Modified), as shown in Figure 10-6.
Figure 10-6
To store a custom cdma2000 state, see “Storing a Component Test Waveform to Memory” on page 316.
