3 Using the Scope Functions
80 Agilent U1602B/U1604B User’s and Service Guide
Save and Recall Controls without USB Flash Memory Device
The instrument allows you to save and recall the setups and waveforms
to/from internal memory. The Save/Recall menu consists of four different
submenus as described in the following sections.

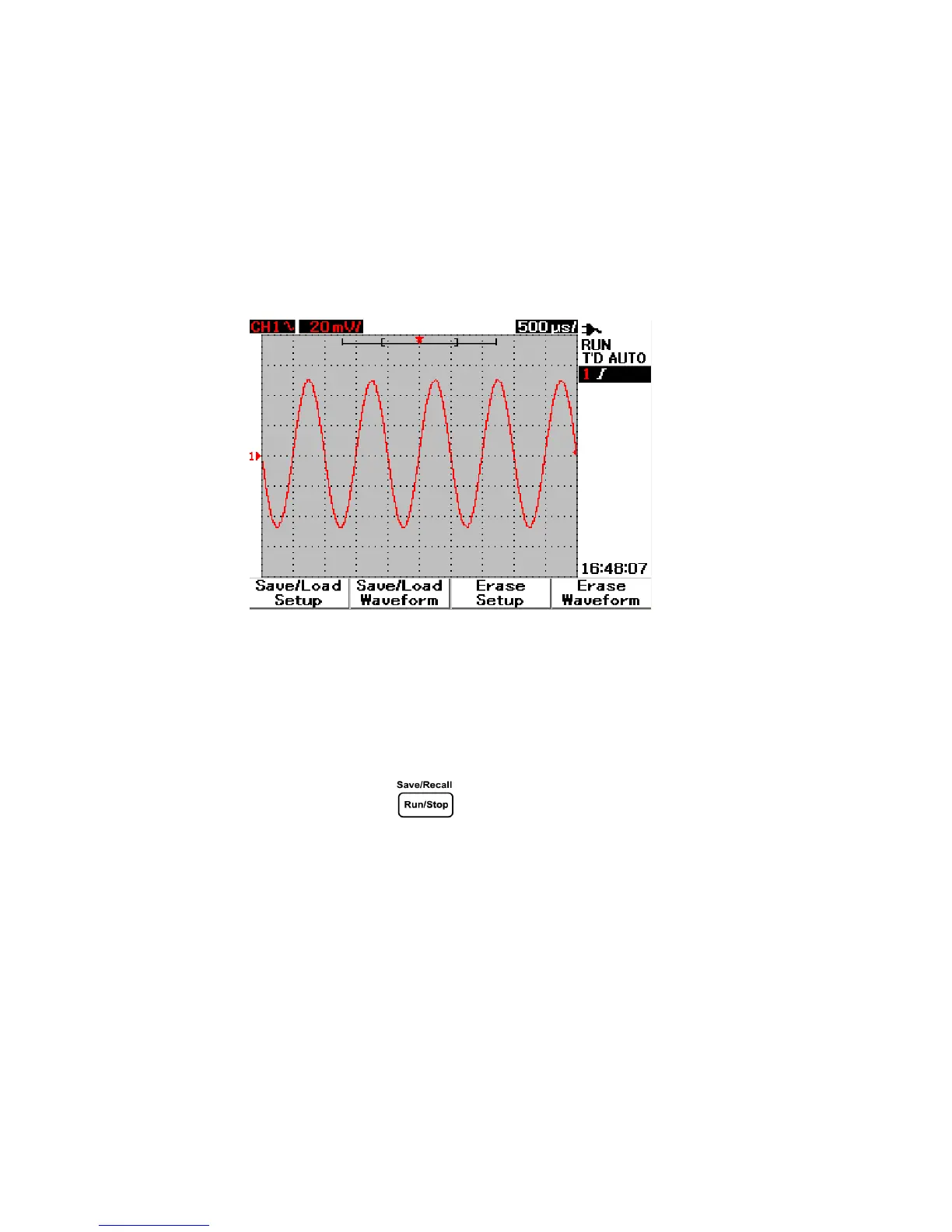

Figure 3-39 Save/Recall menu
To Save and Recall Setup
To save or recall configuration setups to/from internal memory, follow the
instructions below:
1 Press and hold to access Save/Recall menu.
2 Press F1 to access Save/Load Setup menu.
3 Up to 10 setups can be stored over four pages of menu. Press the
respective softkey to save or load setups to/from internal memory.
4 In Figure 3- 39, press F1 to save the configuration setup into Setup 1.
5 Press the F1 again to load the Setup 1 from the internal memory, refer
to Figure 3- 40.
6 Go through the same save and recall setup steps for saving and
recalling the subsequent setups.
