4 Using the Digital Multimeter Functions
114 Agilent U1602B/U1604B User’s and Service Guide
Automatic Measurement in Multimeter Mode
The automatic measurement minimum, maximum and average are also
available for all multimeter measurements except diode test and
capacitance measurement.
The real- time minimum and maximum measurement are displayed along
with the recorded time. The average value is the arithmetic average value
of the last 8 readings.
To enable the function, press F3 in each respective multimeter function
submenu. Refer to Figure 4- 15.

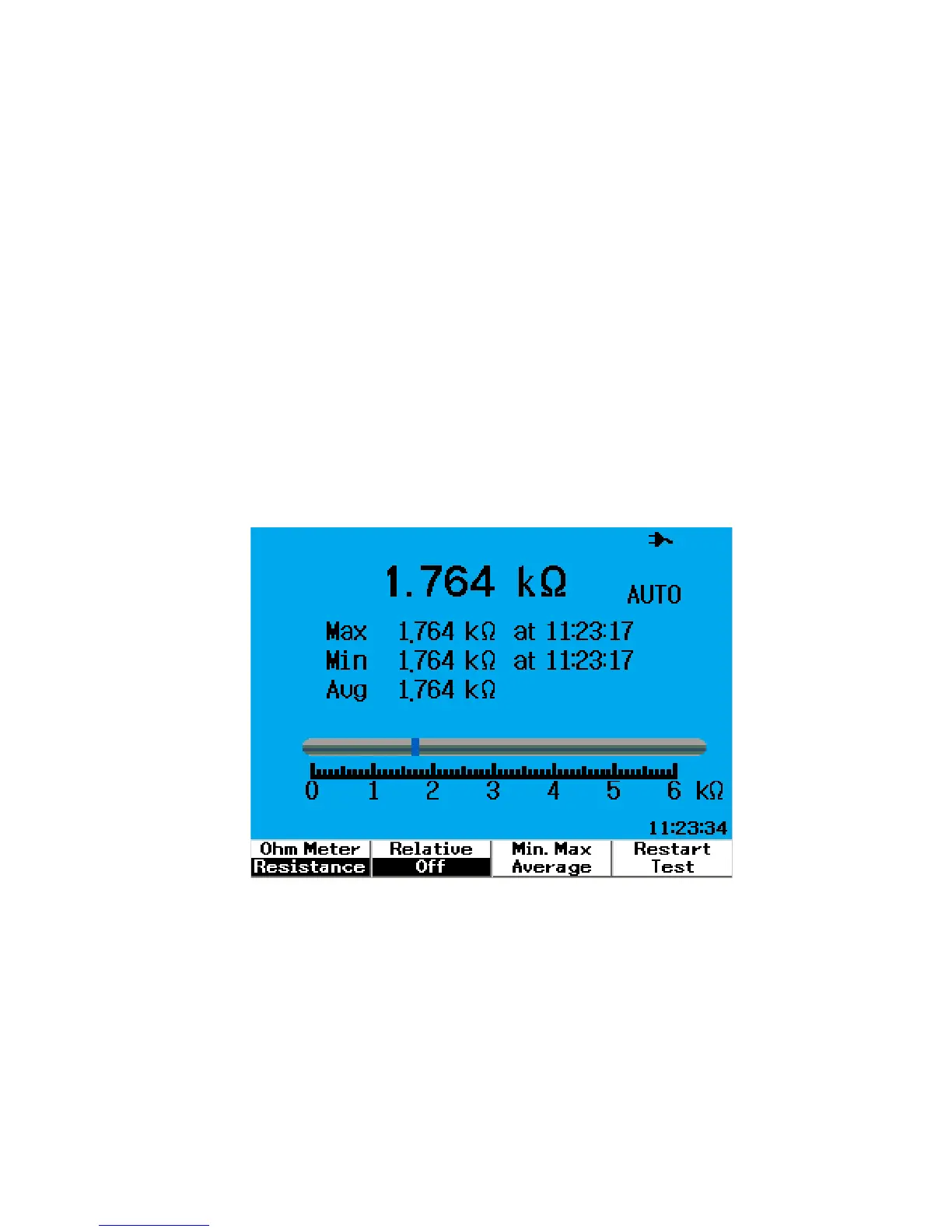

Figure 4-15 Automatic measurement in resistance measurement mode

Agilent Technologies U1604B Specifications

General

Bandwidth	200 MHz
Sample Rate	2 GSa/s
Channels	2
Memory Depth	2 Mpts
Display Type	Color LCD
Weight	1.5 kg
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 100 V/div
Timebase Range	5 ns/div to 50 s/div
Trigger Modes	Edge, Pulse Width, TV, Pattern
Connectivity	USB
Battery Life	Up to 4 hours
Dimensions	256 mm x 169 mm x 64 mm
Display	5.7 in TFT LCD
Type	Handheld
Category	Oscilloscope
Display Size	5.7 in
Input Voltage Range	300 Vrms
Input Impedance	1 MΩ ±2%
Voltage Range	300 Vrms
Power Supply	100 to 240 VAC
