3 Using the Scope Functions
30 Agilent U1602B/U1604B User’s and Service Guide
To Change Vertical Sensitivity
By pressing the button, you can change the vertical sensitivity
(Volts/div) of a waveform. The vertical scale factor changes the Volts/div
scale in a 1- 2- 5 step sequence depending on the probe attenuation.
• 5 mV/div to 100 V/div for 1:1 scope probe
• 50 mV/div to 1 kV/div for 10:1 scope probe
• 500 mV/div to 10 kV/div for 100:1 scope probe
To change vertical sensitivity for each channel, use the vertical scale
factor button for sensitivity increment and reduction. Press the upper
button (with mV indicator) to increase vertical sensitivity or press the
bottom button (with V indicator) to reduce it. The channel Volts/div value
is displayed in the status line (refer to “Oscilloscope Display Overview
23”) as shown in Figure 3- 5.

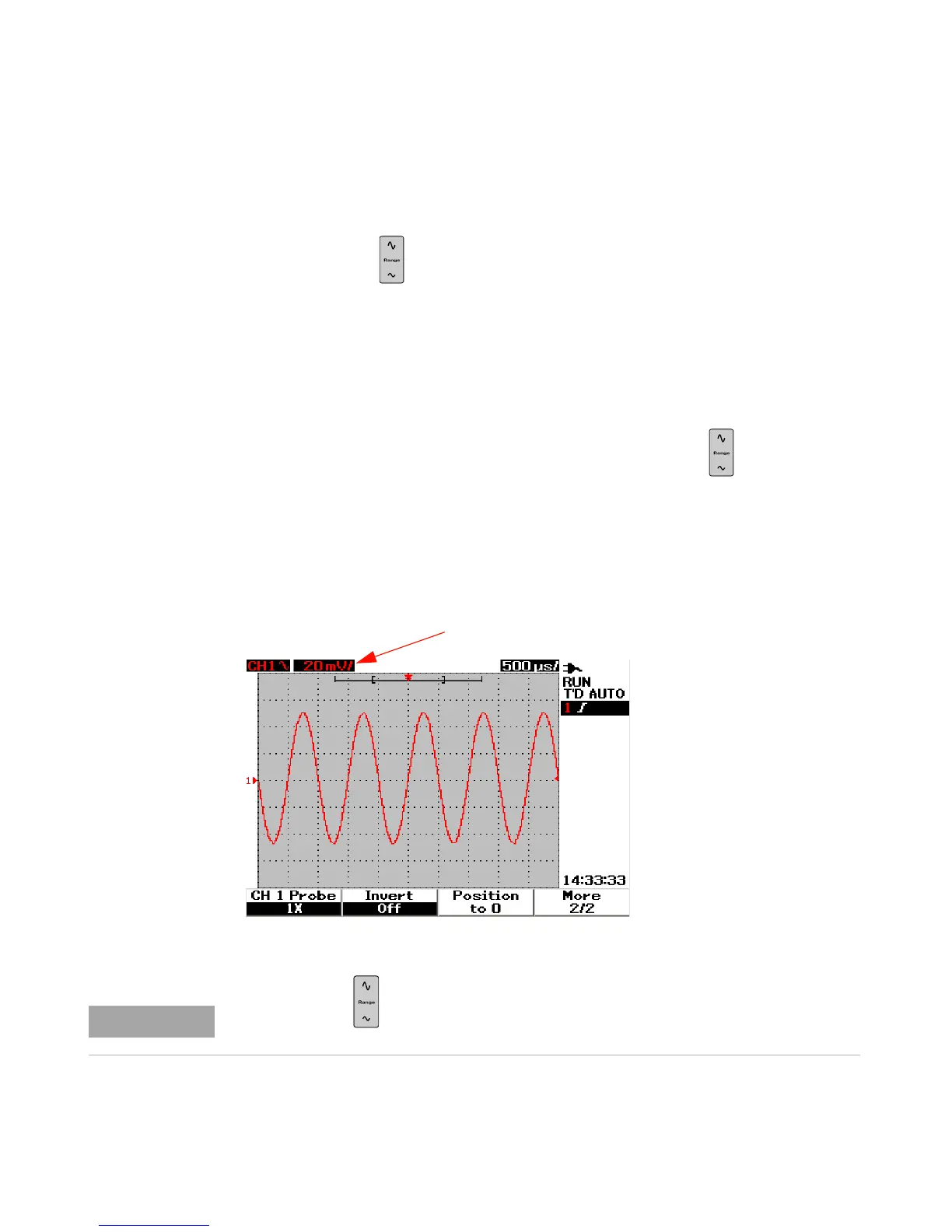

Figure 3-5 Vertical sensitivity display
NOTE
By pressing the button for channel 1 or channel 2, the respective channel’s setting
menu will appear.
Vertical sensitivity
