6 To turn off the measurement file, turn the rotary switch for the
respective file until you see “Off” in the list. Press the rotary switch to
set the off condition.

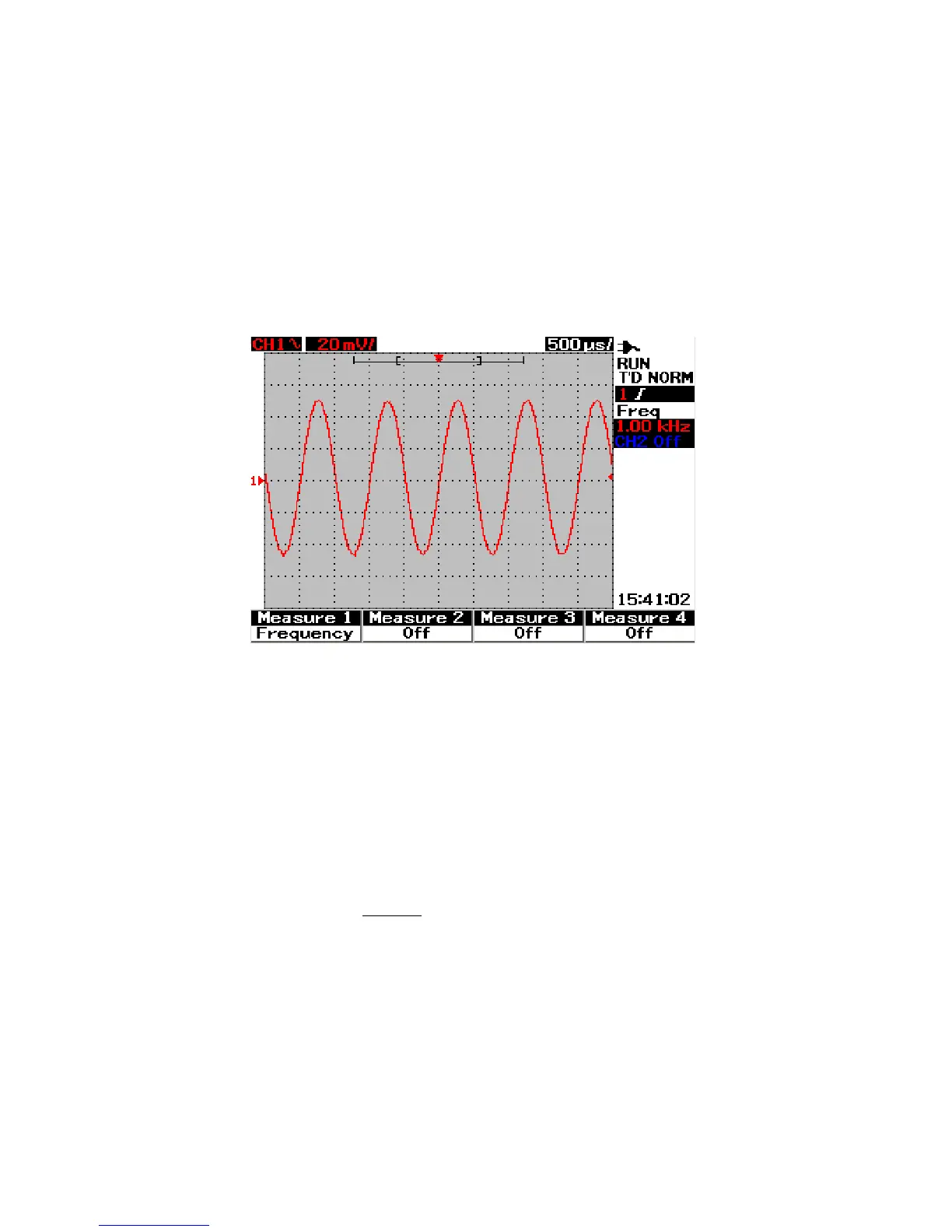

Figure 3-24 Select automatic measurement for the Measure 1 file.
Time Automatic Measurements
+ Duty
The positive duty cycle of a repetitive pulse train is the ratio of the
positive pulse width to the period, expressed in percentage.
+Duty cycle =
–Duty
The negative duty cycle of a repetitive pulse train is the ratio of the
negative pulse width to the period, expressed in percentage.
+Width x 100
Period
