3 Using the Scope Functions
96 Agilent U1602B/U1604B User’s and Service Guide
Probe Calibration
When connecting a passive probe to the instrument for the first time,
scope probe compensation must be performed to guarantee the accuracy
of your measurement. Refer to “To Compensate Scope Probe 15” for the
step- by- step instructions for scope probe compensation.
Low Battery Mode
When the instrument is under low battery condition, the following
warning message appears on the display screen and audible beeper
sounds. After the display of the warning message, the instrument can be
used for approximately 15 minutes before the instrument automatically
turn off. If the instrument is under low battery mode in power off
condition, when users turn the instrument on, it automatically shuts off
after one minute to protect the internal circuit.

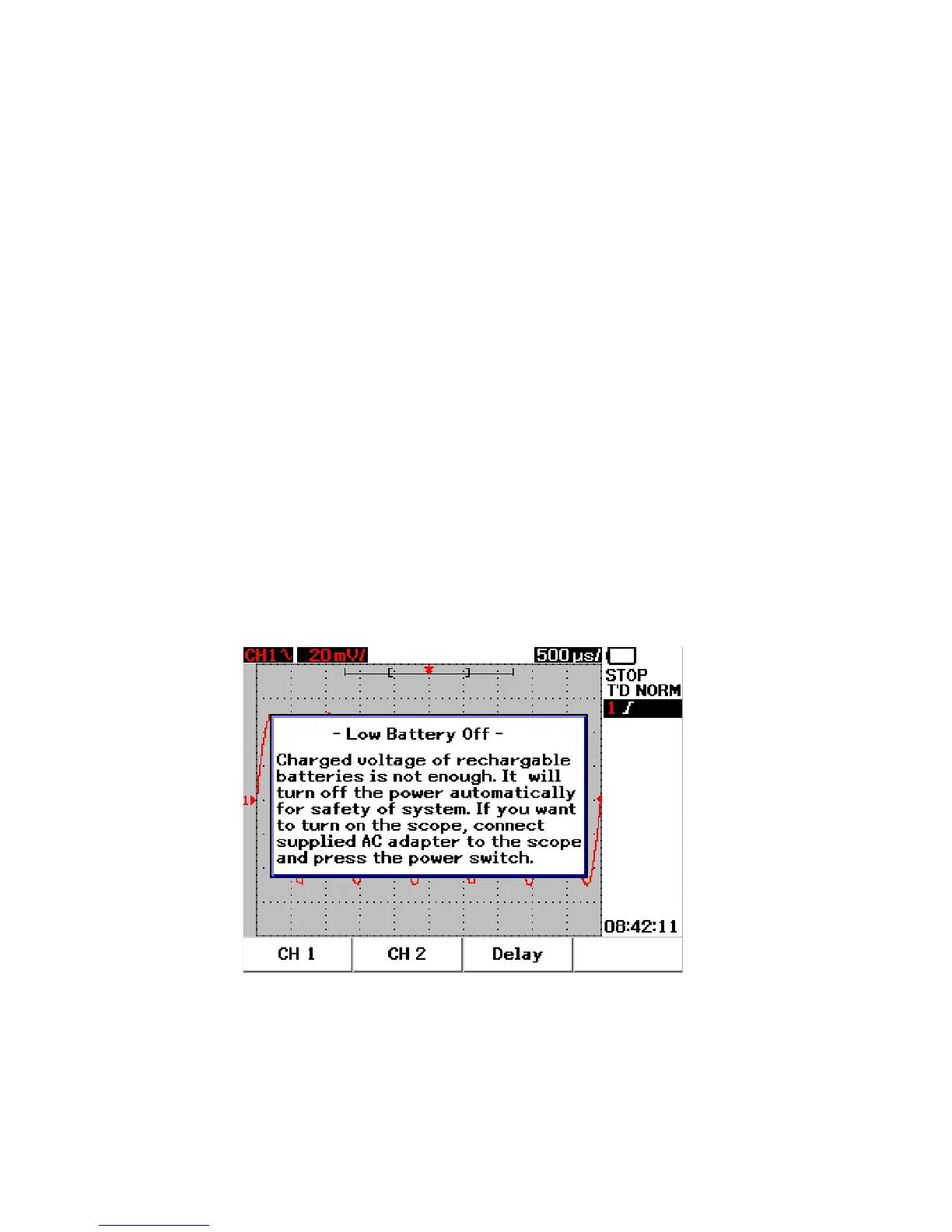

Figure 3-52 Message display during low battery condition
