Using the Scope Functions 3
Agilent U1602B/U1604B User’s and Service Guide 83

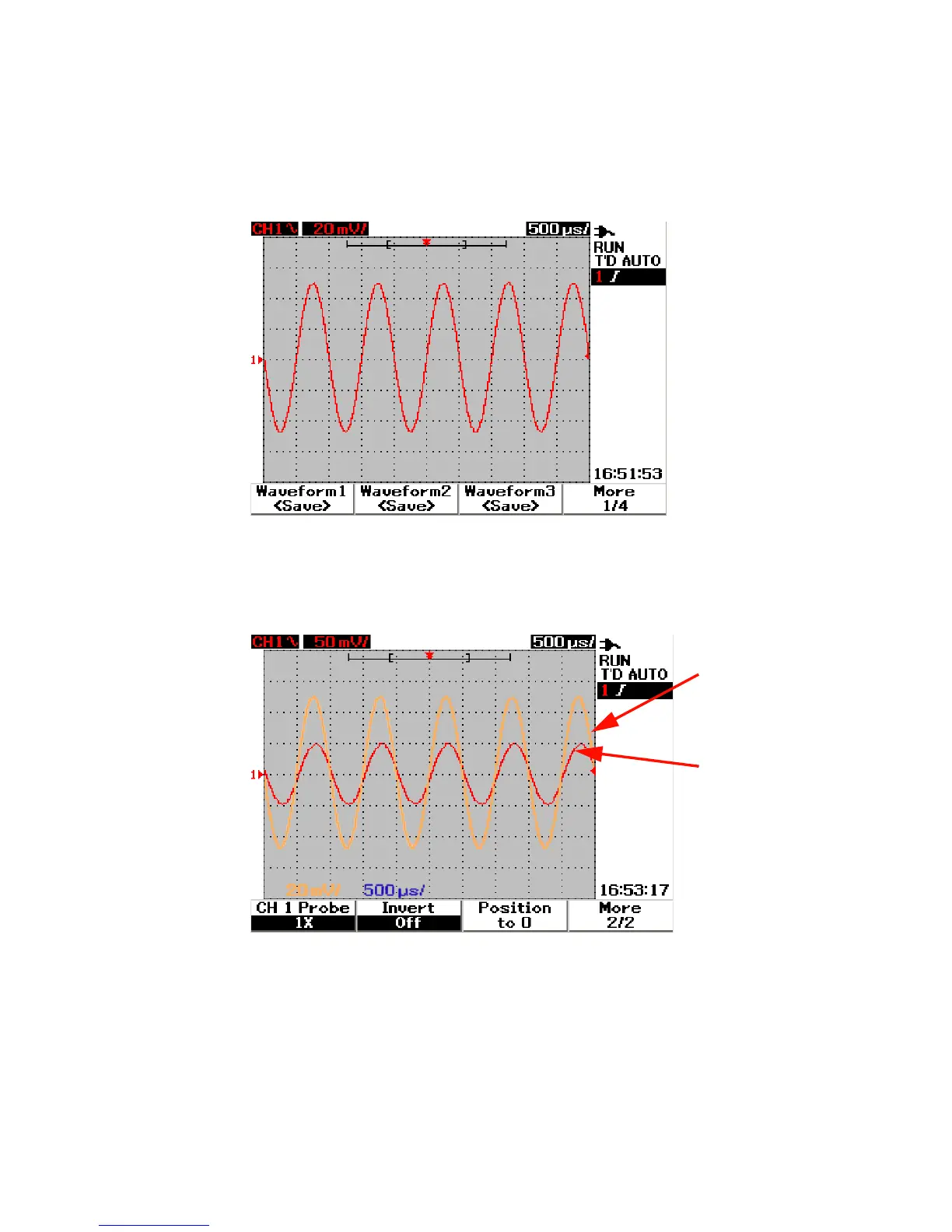

Figure 3-42 The <Save> display indicates no waveform is being saved, you can press F1 to
save the waveform into Waveform 1.
Figure 3-43 The <Load> display indicates the a waveform file is saved into Waveform 1
and you can press F1 to retrieve the waveform from internal memory. This
function is useful for waveform comparison.
New waveform acquisition
Recalled waveform with
vertical and horizontal
setting at the bottom of the
waveform display area.
