Allen-Bradley Kinetix 6000 Design Guide

52 Rockwell Automation Publication KNX-RM003B-EN-P - March 2019
Kinetix 6000 and Kinetix 6200/6500 Drive Systems

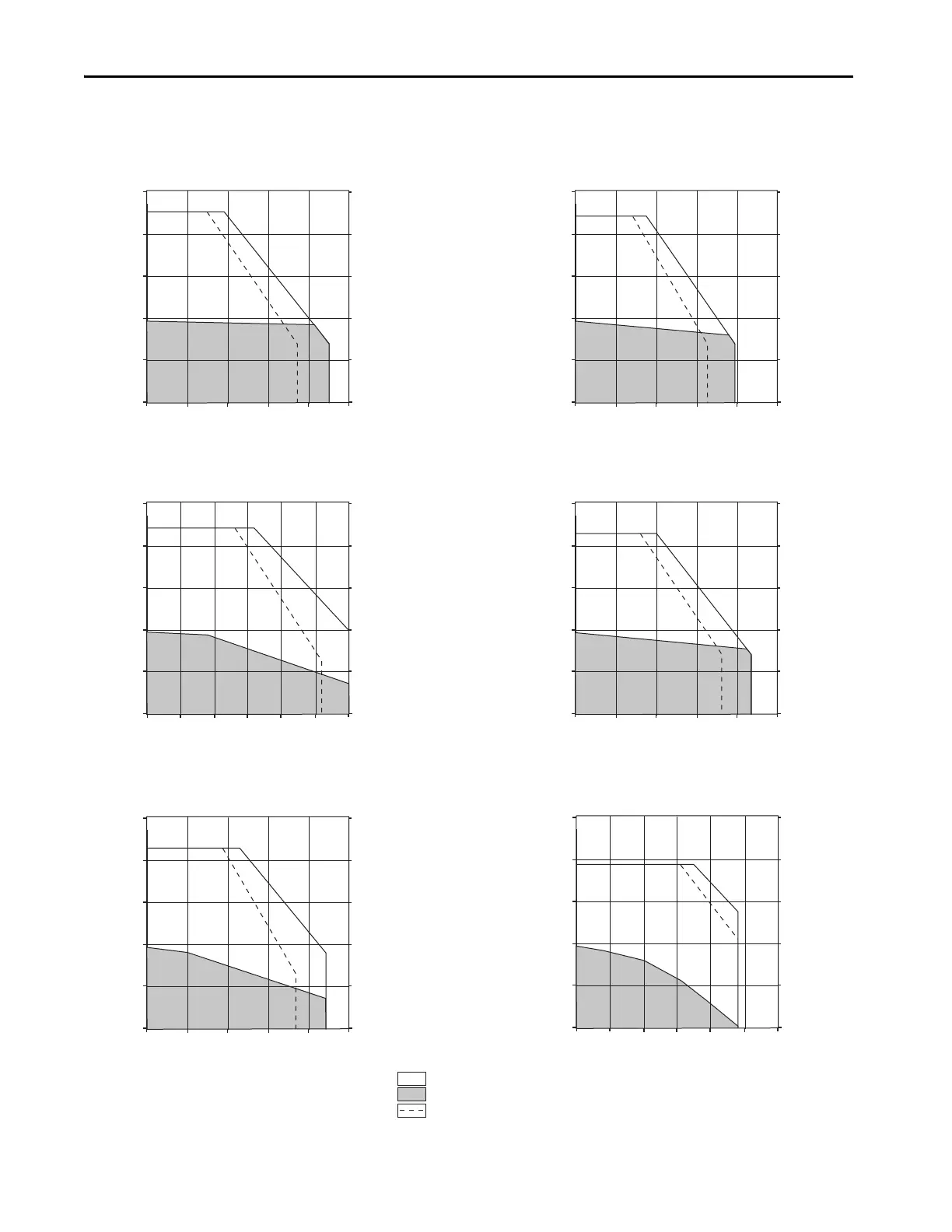

Kinetix 6000 and Kinetix 6200/6500 (400V-class) Drives with RDD-Series Motor Curves (cont.)
Torque
(N•m)
Torque
(lb•in)
0
0
25
50
75
125
100
221
442
664
885
1106
2094-BM02-S @ 250% or 2094-BM02-M
and RDB-B29016
Speed (rpm)
0
400
800
600200
1000
Torque
(N•m)
Torque
(lb•in)
0
0
25
50
75
125
100
221
442
664
885
1106
2094-BM01-S @ 250% or 2094-BM01-M
and RDB-B29014
Speed (rpm)
0
200
400
300100
500
Torque
(N•m)
Torque
(lb•in)
0
0
50
100
150
250
200
442
885
1328
1770
2213
2094-BM02-S @ 250% or 2094-BM02-M
and RDB-B29024
Speed (rpm)
0
200
400
300100
500
Torque
(N•m)
Torque
(lb•in)
0
0
25
50
75
125
100
221
442
664
885
1106
2094-BM03-S @ 250% or 2094-BM03-M
and RDB-B29019
Speed (rpm)
250
500 750 10000 1250
1500
Torque
(N•m)
Torque
(lb•in)
0
0
50
100
150
250
200
442
885
1328
1770
2213
2094-BM03-S @ 250% or 2094-BM03-M
and RDB-B29026
Speed (rpm)
0
400
800
600200
1000
Torque
(N•m)
Torque
(lb•in)
0
0
50
100
150
250
200
442
885
1328
1770
2213
2094-BM05-S @ 200% or 2094-BM05-M
and RDB-B29029
Speed (rpm)
250
500 750 10000 1250
1500
= Intermittent operating region
= Continuous operating region
= Drive operation with 400V AC rms input voltage
