Create a PowerFlex 70 Application Chapter 12
Test the PowerFlex 70 Tags
DeviceNet only
To change a tag in RSLogix:
1. Select the tag value.
2. Enter or select the desired value.
3. Press Enter.

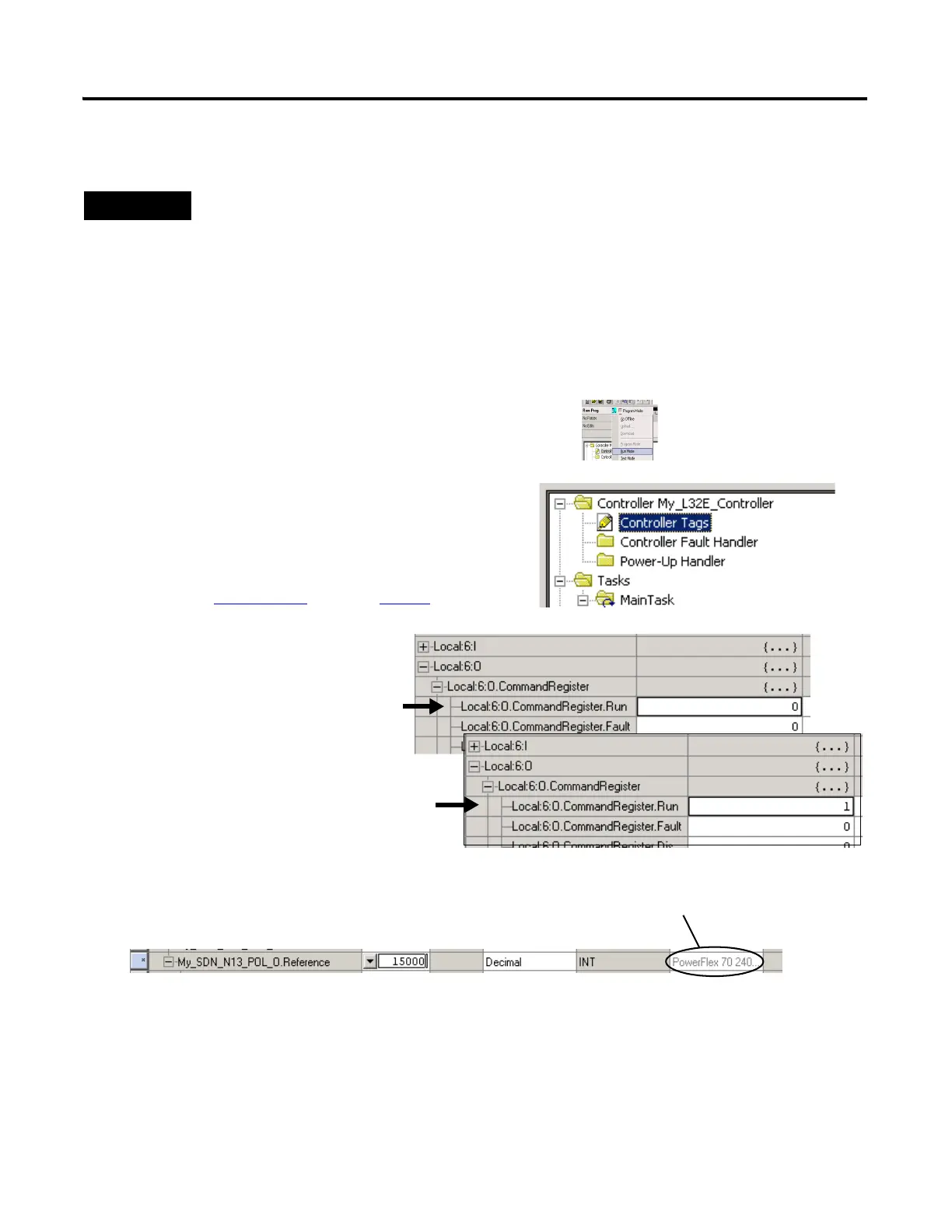

2. In the controller organizer, double-click
Controller Tags.
If you have added distributed I/O to your
project in Chapter 11
, skip to step 4.
3. Change the tag
O.CommandRegister.Run tag
to 1.
This changes the 1769-SDN
scanner to Run mode.
4. At the tag O.Reference, change
the value to 15000 engineering
units (this is approximately 59.5
Hz).
This is the speed your drive will
accelerate to and is determined
using the equation shown.
1. Move the controller keyswitch to RUN.
EU
Hz
--------
32767
130
---------------=
PowerFlex 70 tags are identified
in the description column.
