Chapter 6 Prepare the PanelView Plus Terminal
Wire the PanelView Plus Terminal to the Power Supply
rewoP
CD V42
YLPPUS REWOP
3SP-4971
V42
MOC
+
–

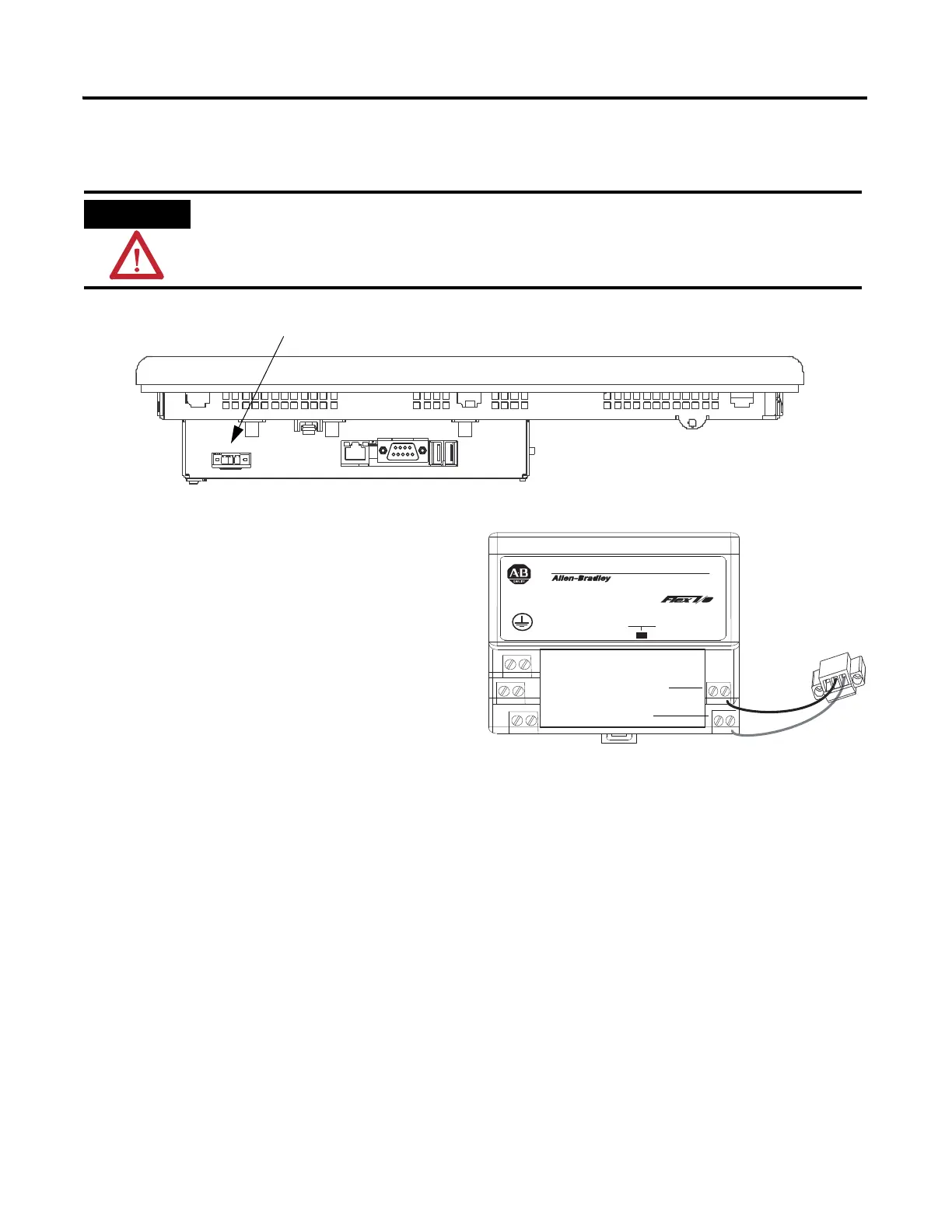

1. Remove the terminal block from the PanelView Plus terminal.
WARNING
Verify that all incoming power is turned off before wiring power.
Common
Power
2. Connect the 12/24V DC common and
12/24V DC power wires from the power
supply to the terminal block,
- (common) and + (power).
3. Connect the terminal block to the
PanelView Plus.
4. Turn on incoming power.
