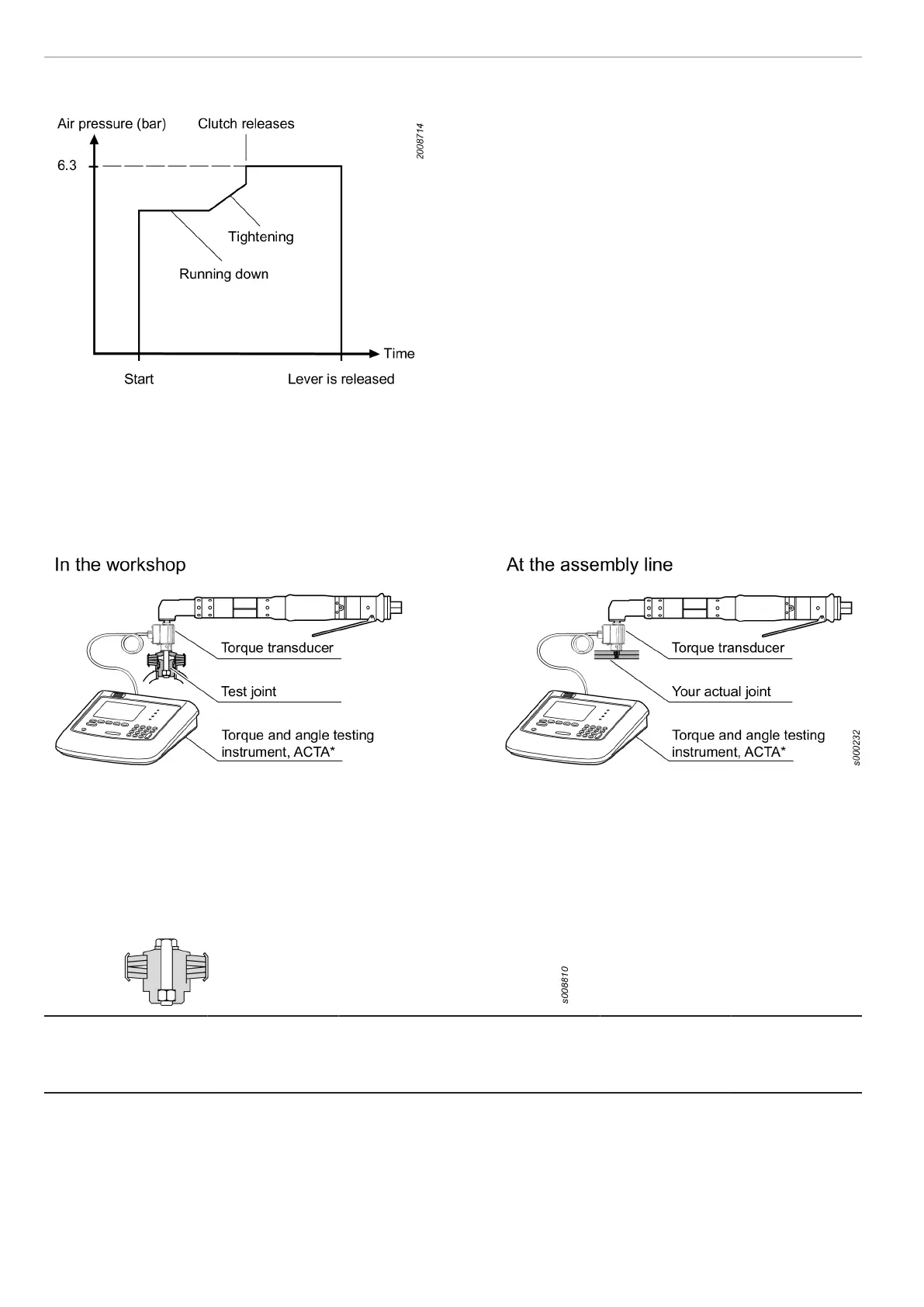

Diagram, RE - signal
With the RE-signal Kit an air pressure signal will be supplied, which can be
connected to a control unit to count the number of tightening and to detect pre-
mature and rehits
Testing of tightening torque
Torque and angle testing instrument
ACTA* 3000/ 4000. For further informatiom, please see our main catalogue or
separate leaflet.
Testjoint and Transducer
Select testjoint and transducers according to maximum torque of your tool
Soft joints
Bolt size
Torque range
Nm
Ordering No.
Torque rate
Nm/rev.
Degrees at
rated
capacity
Service kit*
M8 15 4080 0788 91 10 540 4080 0788 80
M10 30 4080 0789 91 24 450 4080 0789 80
M12 60 4080 0790 91 40 540 4080 0790 80
M14 90 4080 0791 91 60 540 4080 0791 80
