45Bend-Tech Dragon A150
Troubleshooting Guide
Trolley
09
09
Trolley
Trolley

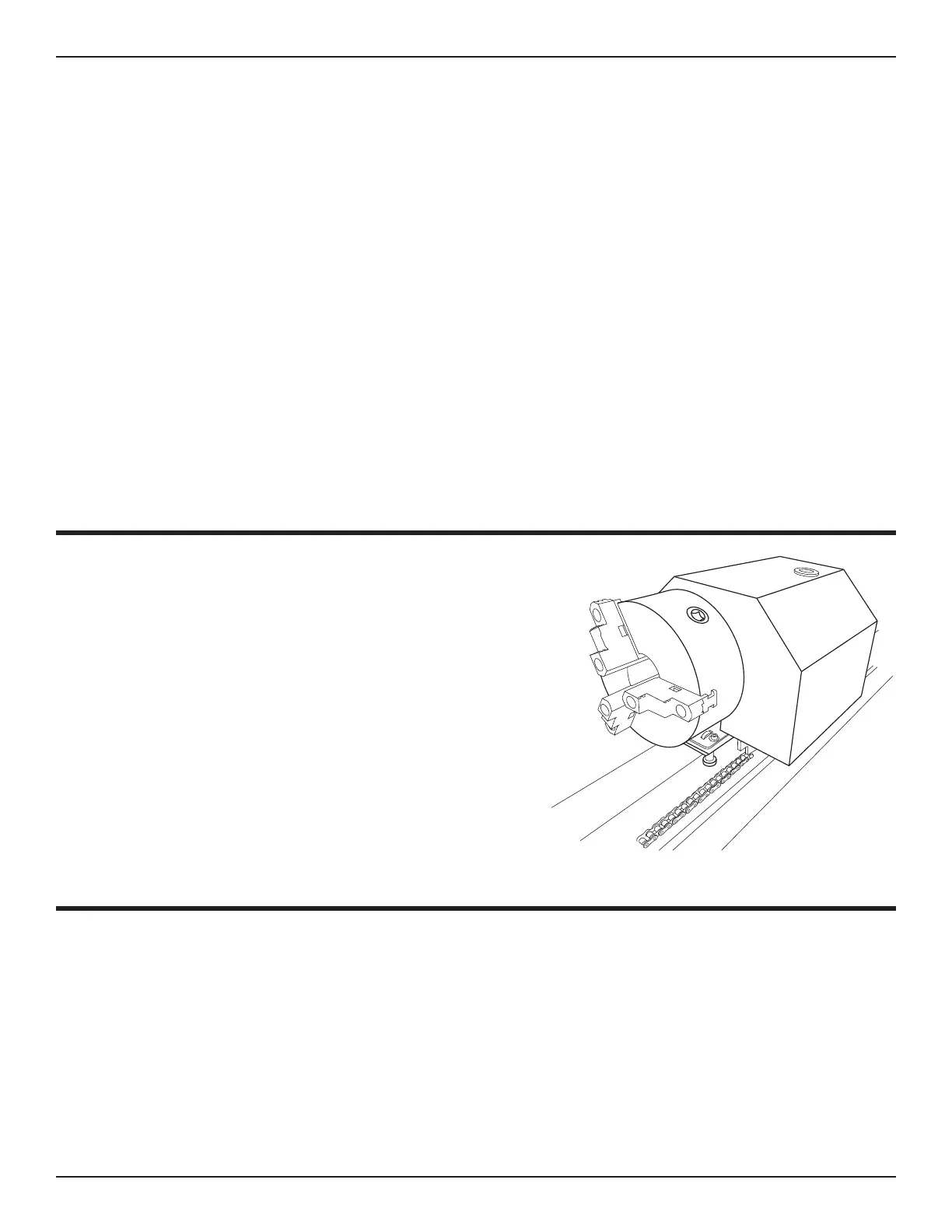

The Trolley on the Dragon A150 rides on a steel
rail. The Trolley’s roller system is a two-piece
design. The Trolley rides on the upper part of the
roller system. The upper part of the roller system is
connected to the lower part via an adjustment plate
that is mounted on the right side of the assembly.
When adjusted properly the Trolley should move
along the Rail smoothly with no play or bind
anywhere along its travel. If there is play in the
Trolley the Operator will be required to adjust the
Trolley assembly.
Trolley Adjustment
The Trolley adjustment plate is located under the Trolley on the right side of the Rail. There
are eight socket cap screws on the Trolley adjustment plate. The four socket cap screws with
nuts on the backside adjust side play. These are placed highest and lowest on the Trolley
adjustment plate. The four socket cap screws without nuts adjust the up and down play on the
Trolley.
