Troubleshooting Guide
Operator Control Panel
14
14
Operator Control Panel
Operator Control Panel
The Operator Control Panel allows the Operator to control the Dragon A150 machine. The
Operator Control Panel contains the ESS board and Breakout Board. The Operator Control
Panel gathers information from Bend-Tech software and sends it to the Dragon A150 machine
to perform its CNC operations. Knowing the functions of the ESS board and Operator Control
Panel can assist the Operator in diagnosing issues that may arise regarding the Dragon A150.

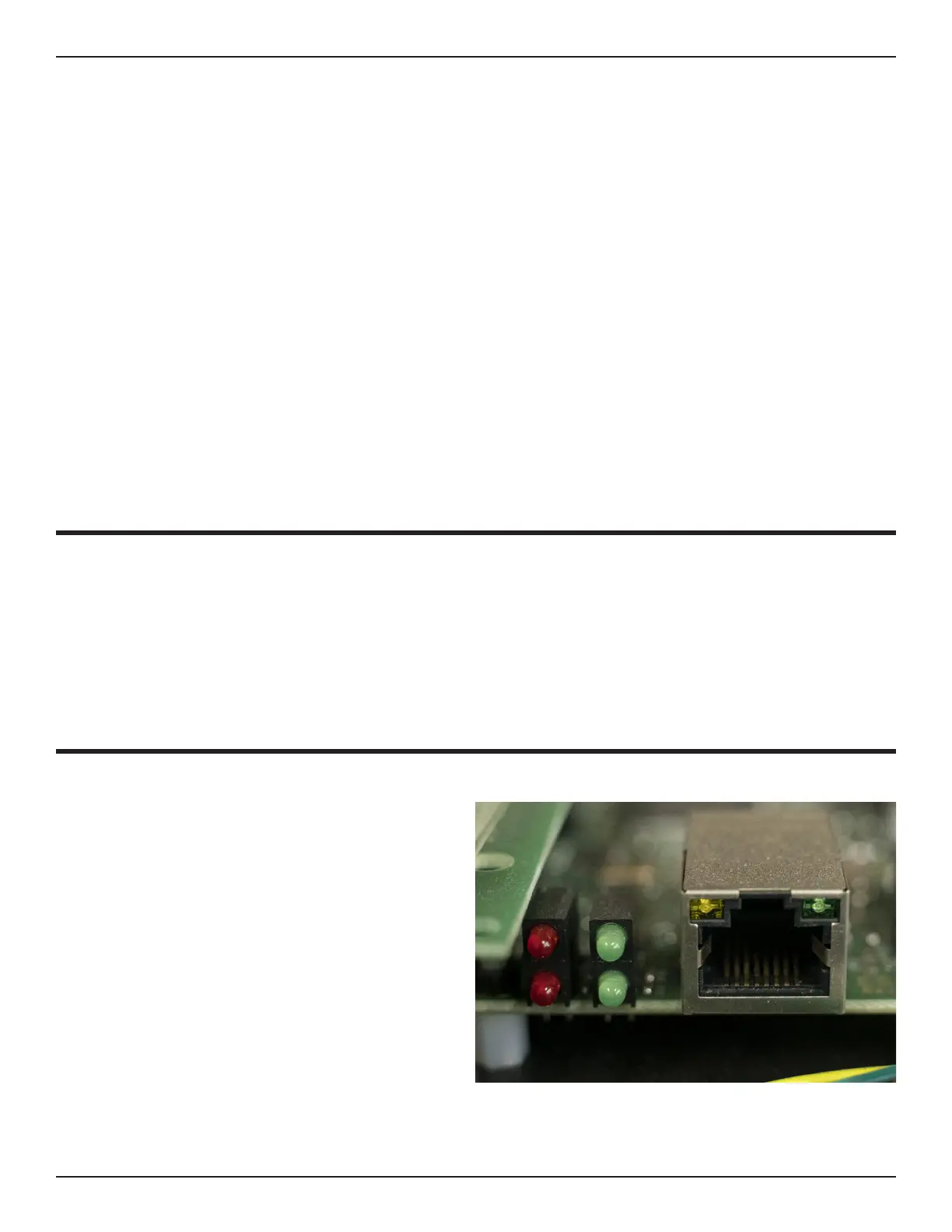

Reading ESS LED Status Codes
The port where the Ethernet cable
connects to the Ethernet Smooth Stepper
board inside the Operator Control Box
has colored status lights. Knowing the
meaning of the behavior of these status
lights can help the Operator diagnose
connection problems between Mach3 and
the DragonA400.
