CB-100-2 13

E (4x)

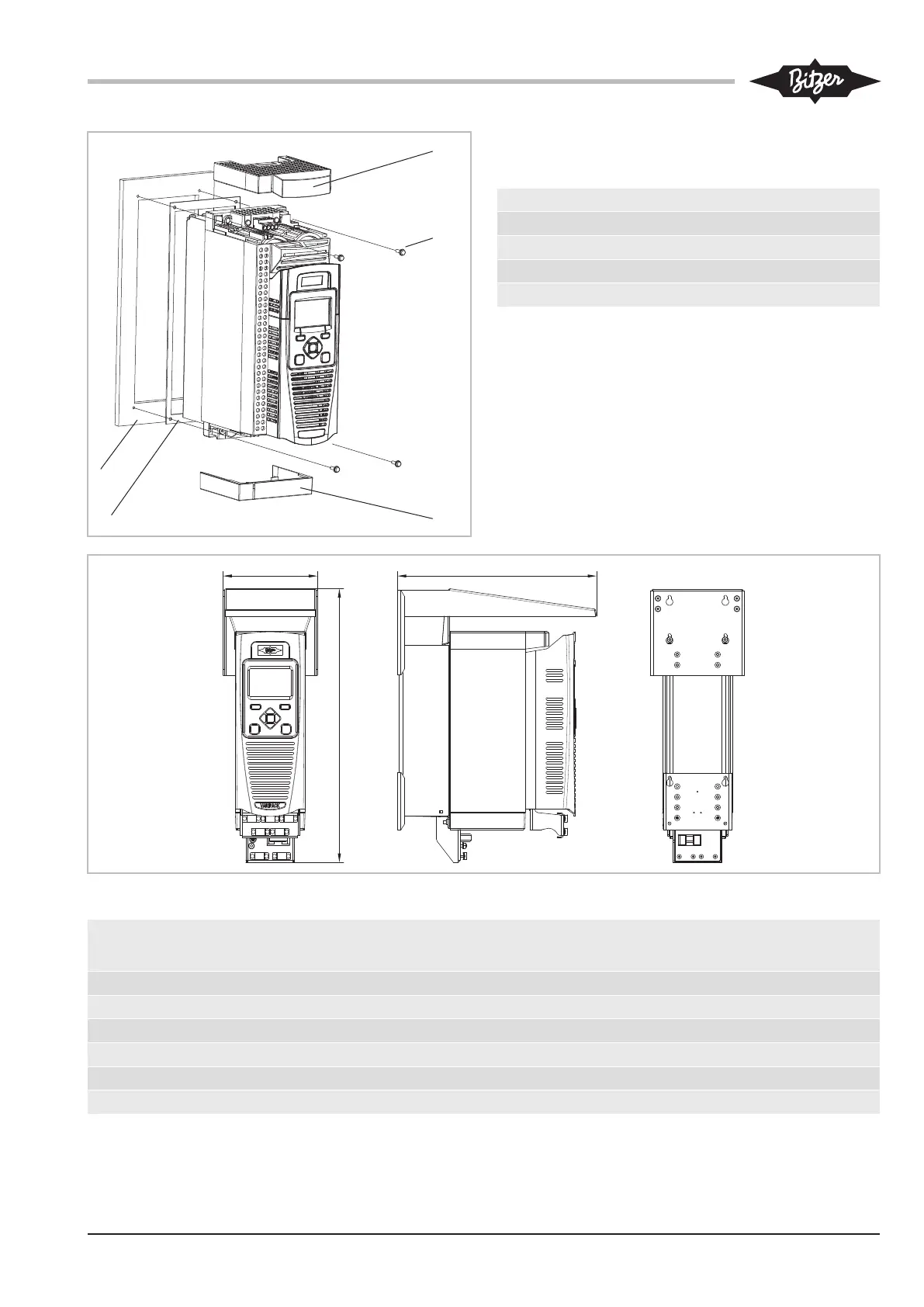

Fig.8: Detailed view of the through-switch cabinet mounting (ex-

ample FDU)

A Upper housing cover

B Lower housing cover

C Switch cabinet wall

D Gasket (in the accessories kit)

E Fixing screws

4.5 Mounting in machinery room (option)

For free mounting in machinery room, the IP21 kit must

be mounted, see chapter Mounting instructions for the

IP21 kit, page 14. The exterior dimensions of the

VARIPACK frequency inverter will increase accord-

ingly, see figure 9, page 13.

Fig.9: Dimensional drawings FDU+6 .. FKU+260 with free mounting with IP21 kit (drawing shows FDU with optional control panel)

FDU+6, FDU+12 135 391 285

FEU+16, FEU+24 160 445 300

FGU+32, FGU+38 215 505 300

FHU+45..FHU+73 300 660 355

FJU+87..FJU+145 360 940 480

FKU+180..FKU+260 450 1160 520
