CB-100-240

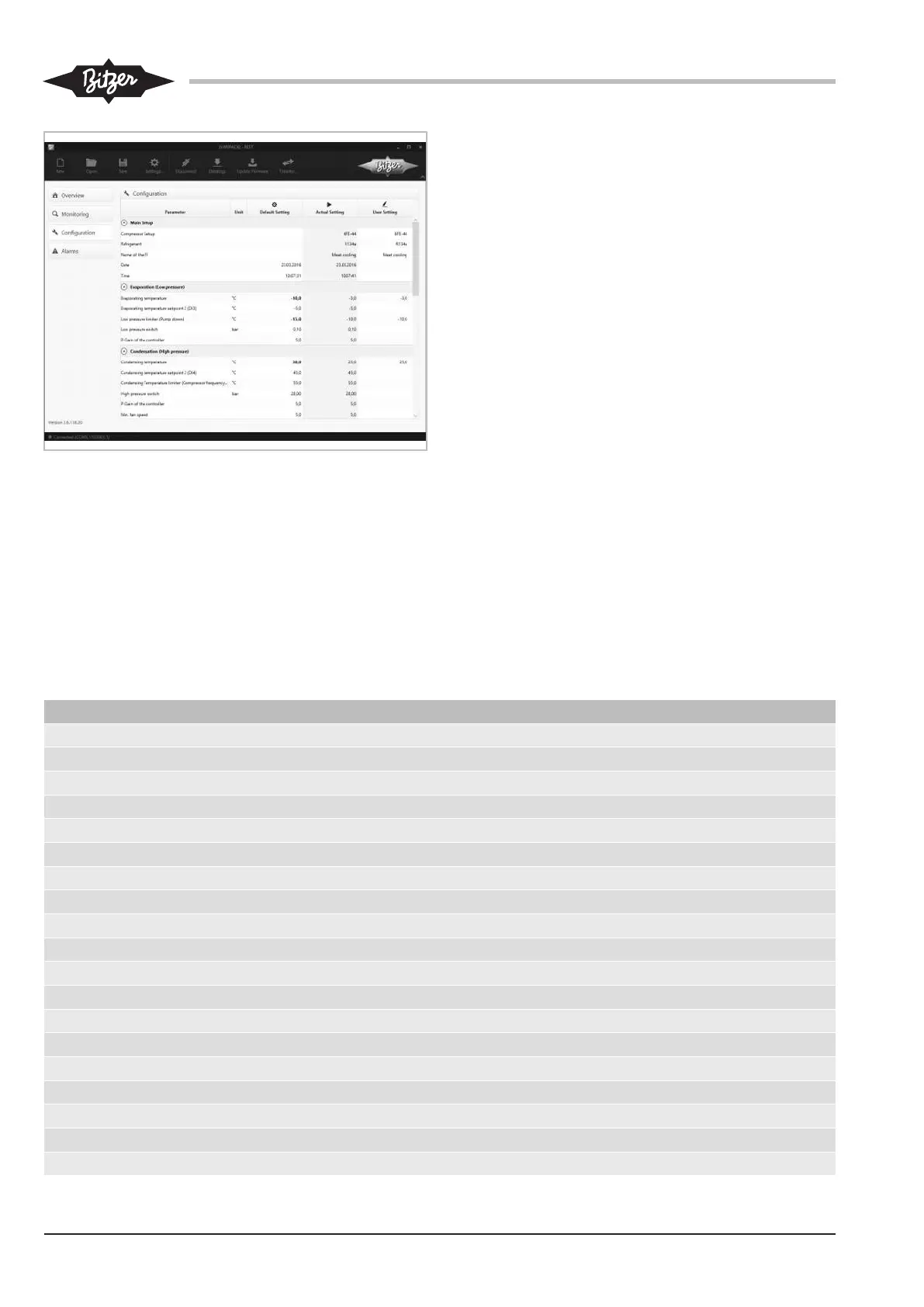

Fig.29: VARIPACK configuration "Pressure control"
9 Fault messages and monitoring functions
Description of the fault types:
"Timed resets":
• "Timed reset" faults are reset automatically up to 5
times. If the fault is no longer active and the following
parametrised time delay has elapsed, the com-
pressor can restart. The "Timed Reset" interval can
be configured from VARIPACK firmware V1.14. The
factory setting is – like in the previous version –
300s. Shorter intervals should only be set in sys-
tems equipped with a system controller with alarm
management function. After 5errors within 5con-
figured and successively elapsed intervals or after
5errors within 5minutes, an "External resets" error
is triggered.
• After an error-free operation of at least 5minutes or
after 5configured intervals performed successively
without any faults, the number of possible "Timed re-
sets" is reset to 5. This is also done if a fault is reset
actively, for example via the DI5 digital input (Reset).
"External resets":
• Faults of the "External reset" type are reset if the
fault is no longer active and a reset command is re-
ceived. The reset command can be sent by pressing
the red key on the control panel or via the digital in-
put (DI5) or via Modbus.
No. Fault Warning Fault type
1 Overvoltage X "Timed reset"
2 Under-voltage X "Timed reset"
3 Overcurrent "Timed reset"
4 Power stack fault "Timed reset"
5 Power stack overcurrent "Timed reset"
6 Current limit "Timed reset"
7 Motor stall "Timed reset"
8 Overload "Timed reset"
9 Overload (permanent magnet motors) "Timed reset"
10 Overcurrent at low speed "Timed reset"
11 Ambient overtemperature heat sink X "Timed reset"
12 Ambient overtemperature control module X "Timed reset"
14 Compressor start failed "Timed reset"
20 Line contactor "Timed reset"
21 Phase failure "Timed reset"
22 VDC ripple "Timed reset"
24 24V overload "Timed reset"
27 STO active "Timed reset"
29 Fan error "Timed reset"
