Black Box ServSwitch User Manual

ServSwitch™ DKM
36
5 Diagnostic
5.1 ServSwitch™ DKM – I/O Boards
Each ServSwitch™ DKM I/O Board is fitted with indicator LEDs for status diagnostics.

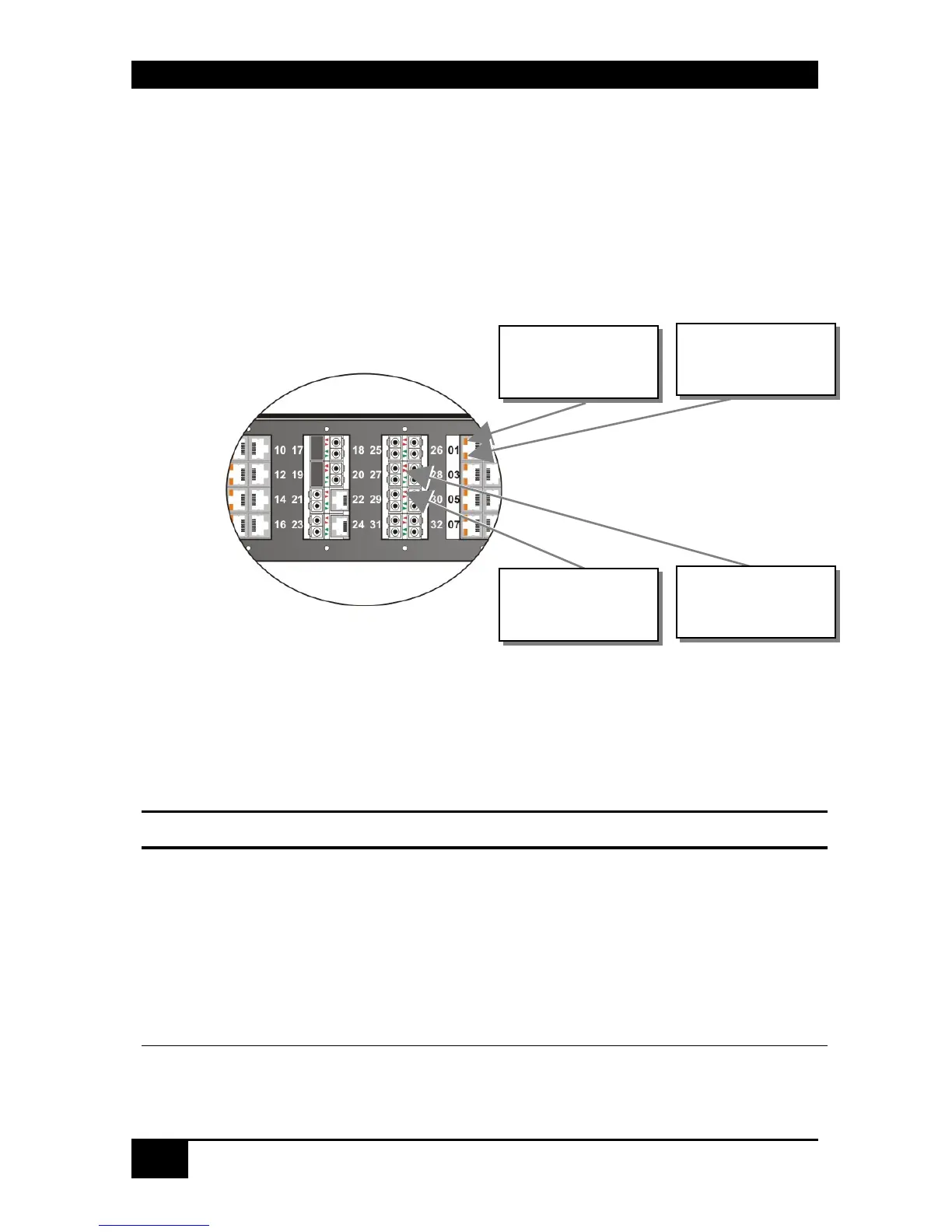

The location of the LEDs is shown below:
Diagnostic LEDs at CATx I/O Boards
The Link Status LEDs are at the left CATx- sockets in the upper and lower corner. The LEDs
in the upper corners show the status for the left CATx- connection, the lower LEDs for the
right CATx- connection.
LED Appearance Diagnostics
Link Status
(Green / Orange
LED)
Green blinking
Green On
Orange blinking
Off
CATx cable connection OK
Data transmission active
CATx cable connection OK
No data transmission
Port active, no CATx cable connection
(no cable, cable defective, local / remote unit off or
attached to wrong port)
Port deactivated
Diagnostic LED
Link Status
Left Socket
Diagnostic LED
Link Status
Right Socket
Diagnostic LED
Link Status
Left Socket
Diagnostic LED
Link Status
Right Socket
