Black Box ServSwitch User Manual

SERVSWITCH™ DKM CONFIGURATION
53
6.1.7 User Matrix Configuration
Please select the option “User Matrix” in the “Configuration” menu by using the cursor
buttons and confirm with <RETURN>.

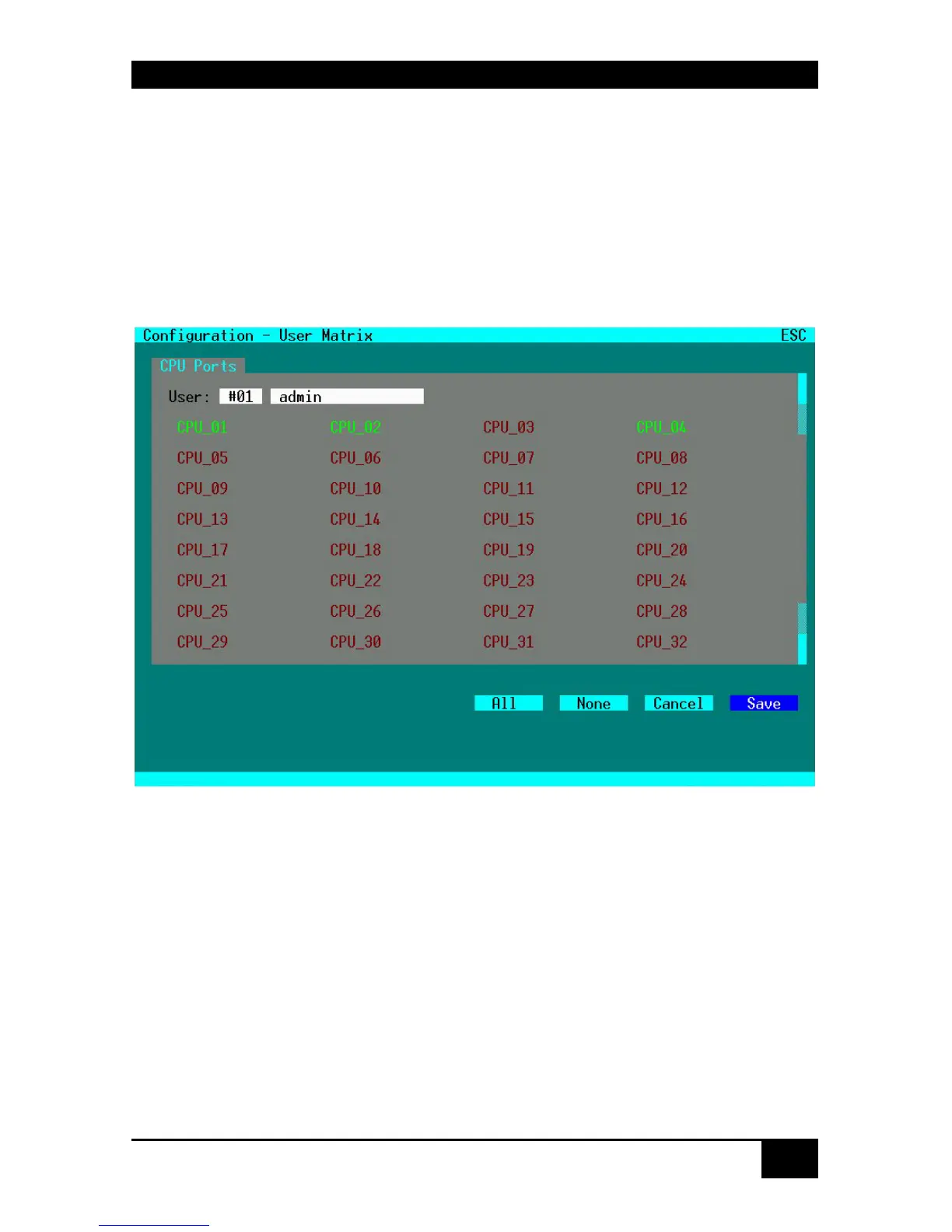

 The “User Matrix” mask is displayed full screen.
In this menu, the administrator can define for each user a specific set of CPU’s that this user
might connect to. The use of this matrix is activated in the “System” Menu by setting the
option “User Matrix”. If the option “User Matrix”.is active, any switching requires the user to
be logged in. Only then, switching by Hot keys will be supported.
Keyboard Control:
<Page up> Page up to previous user
<Page down> Page down to next user
<Cursor left> Move to left field
<Cursor right> Move to right field
<Cursor up> Line up
<Cursor down> Line down
<Tab> Next field
<Shift> + <Tab> Previous field
<SPACE> Release selected CPU-Port for selected User
<RETURN> Release selected CPU-Port for selected User
<ESC> Back to “Configuration” Menu
