Document and Paper
2-4

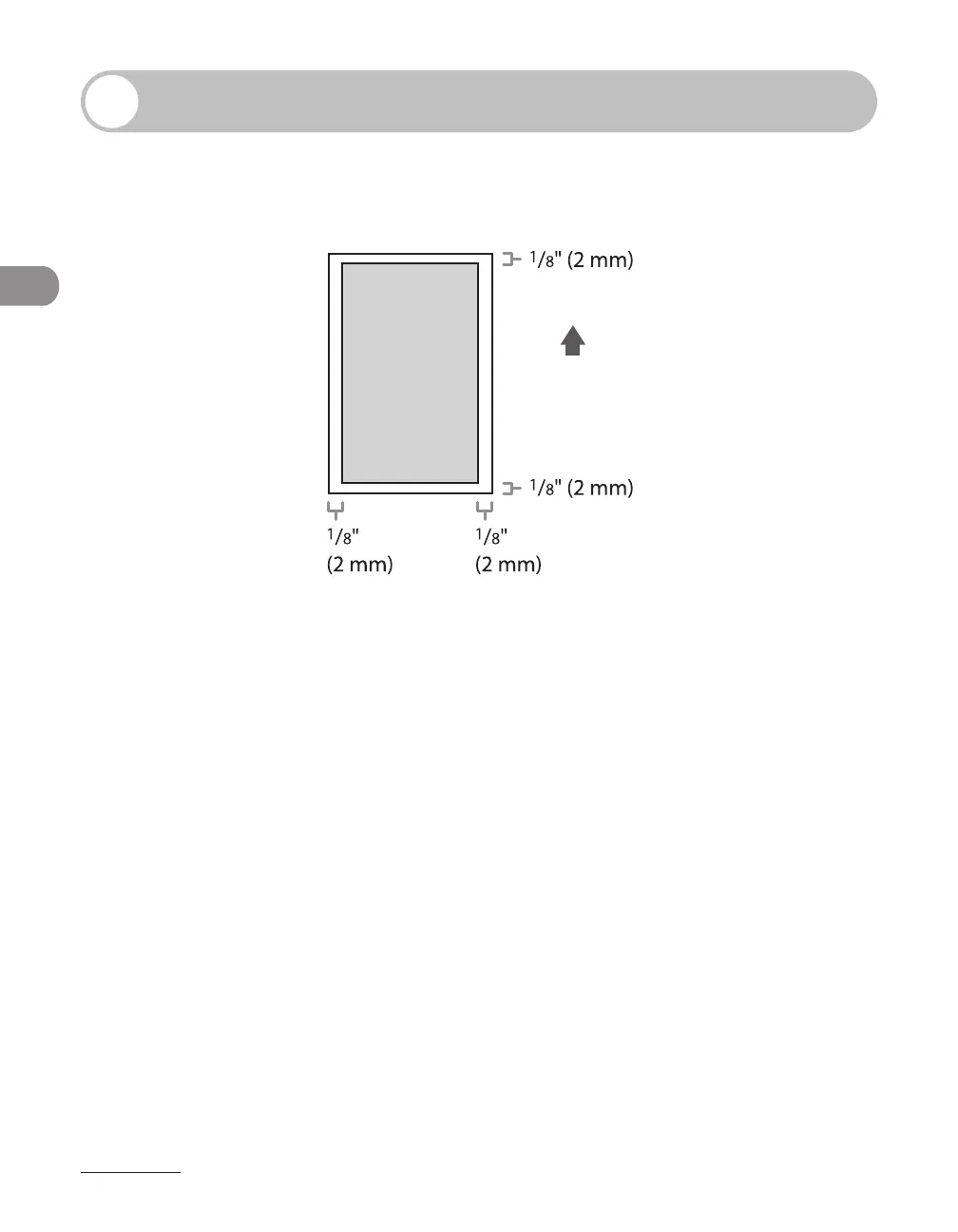

Scanning Area
Make sure y
our do
cument's t
ext and graphics fall within the shaded area in the
following diagr
am. Note that the mar
gin widths listed are appr
oxima
te and there ma
y
be slight variations in actual use.
62
64
