Handling
rolls
Removing
Rolls
from
the
Roll
Feed
Unit
Remove
any
rolls
in
the
Roll
Feed
Unit
as
follows.

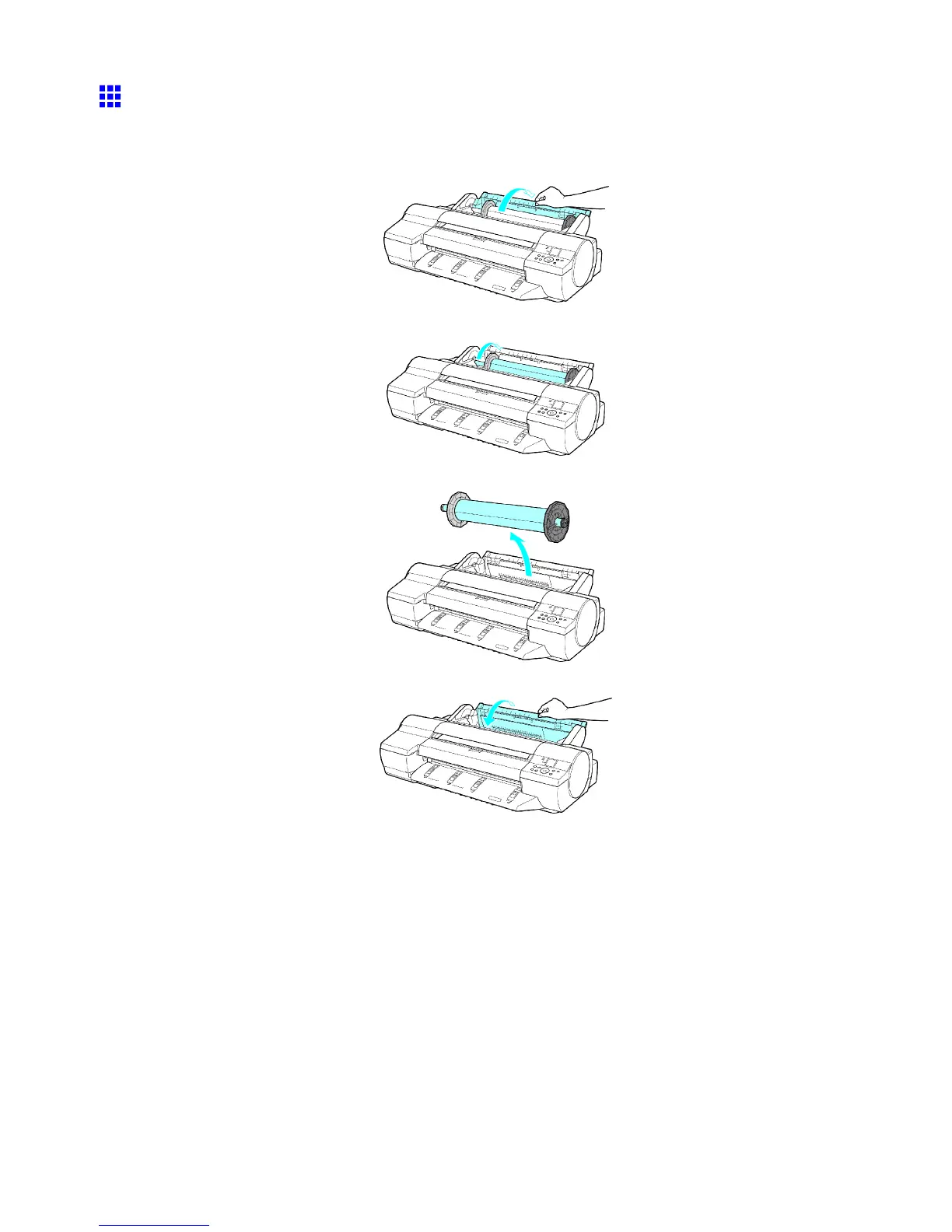

1.
Open
the
Roll
Feed
Unit
Cover
.
2.
Using
both
hands,
rotate
the
Roll
Holder
toward
the
back
to
rewind
the
roll.
3.
Remove
the
Roll
Holder
from
the
Roll
Holder
Slot
.
4.
Close
the
Roll
Feed
Unit
Cover
.
Handling
Paper
125
138
140
