Adjusting the Printhead
Adjusting the Printhead Height
If printed documents rub against the printer during printing or if the edge of paper is wrinkled from rubbing, it
may help to raise the Printhead .
If image edges are blurred, it may help to lower the Printhead .

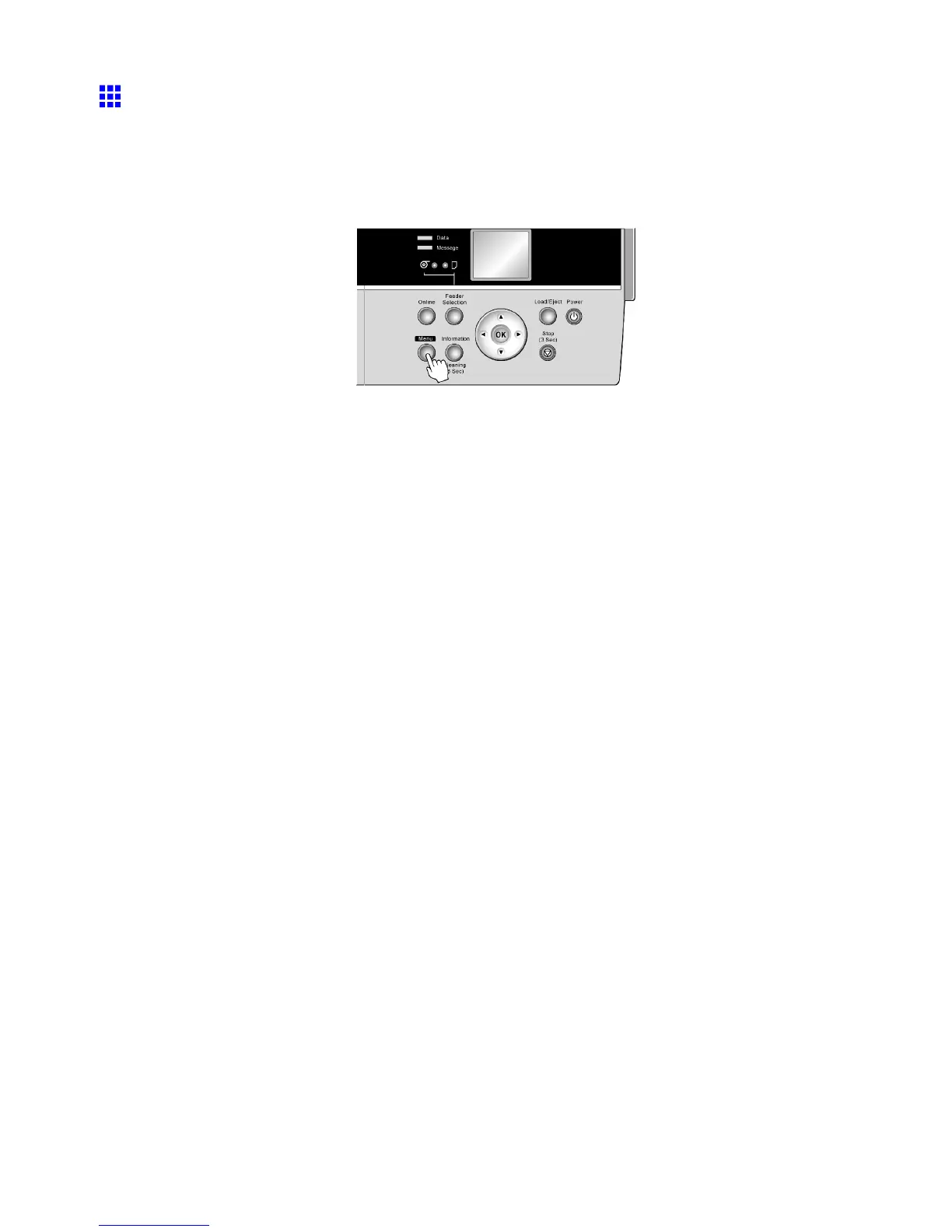

1. Press the Menu button to display MAIN MENU .
2. Press ▲ or ▼ to select Paper Details , and then press the ► button.
3. Press ▲ or ▼ to select the type of paper , and then press the ► button.
4. Press ▲ or ▼ to select Head Height , and then press the ► button.
5. Press ▲ or ▼ to select the Printhead height, and then press the OK button.
576 Adjustments for Better Print Quality
