Printer parts

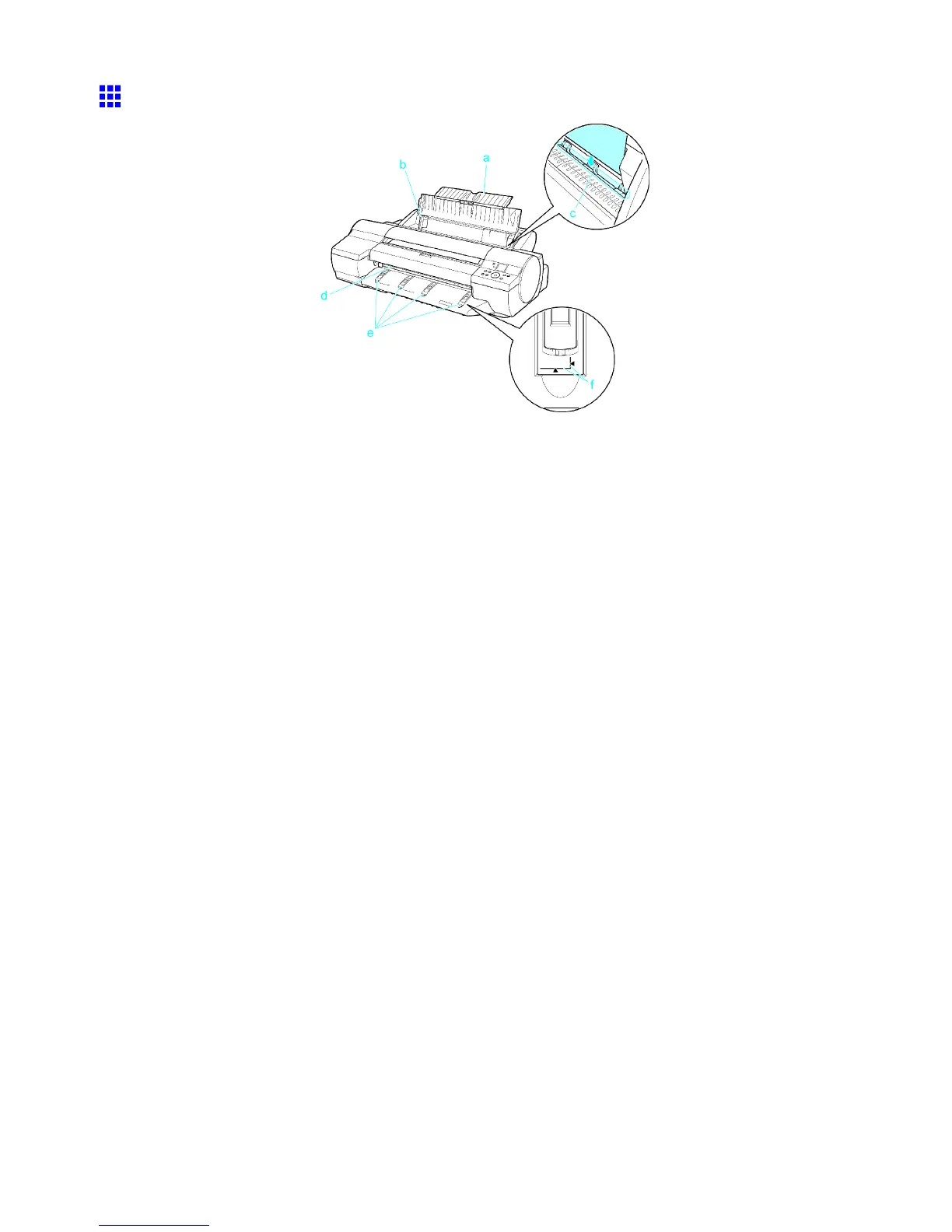

T ray Feed Area
a. T ray Extension
When loading sheets on the tray , open the Paper T ray Cover before opening the tray .
b. Width Guide
When loading the sheets , move the guide to match the paper size.
c. T op Paper Feed Slot
When loading sheets, insert them here.
d. Front Paper Feed Slot ( Output T ray )
When loading heavyweight paper , insert it here. Also, all printed documents are ejected from
this slot.
e. Front T ray Guides
Lift all of the guides before printing on heavyweight paper . When feeding heavyweight paper ,
rest the sheet on these guides, align it to the right, and insert the leading edge up to the Paper
Alignment Line .
f. Paper Alignment Line
When loading heavyweight paper , ensure the paper edge is parallel to this line.
16 Printer Parts
