4-2
CONNECTOR CHECK
BEFORE TROUBLESHOOTING
1. Disconnect the battery plug before connecting or
disconnecting each connector or terminal

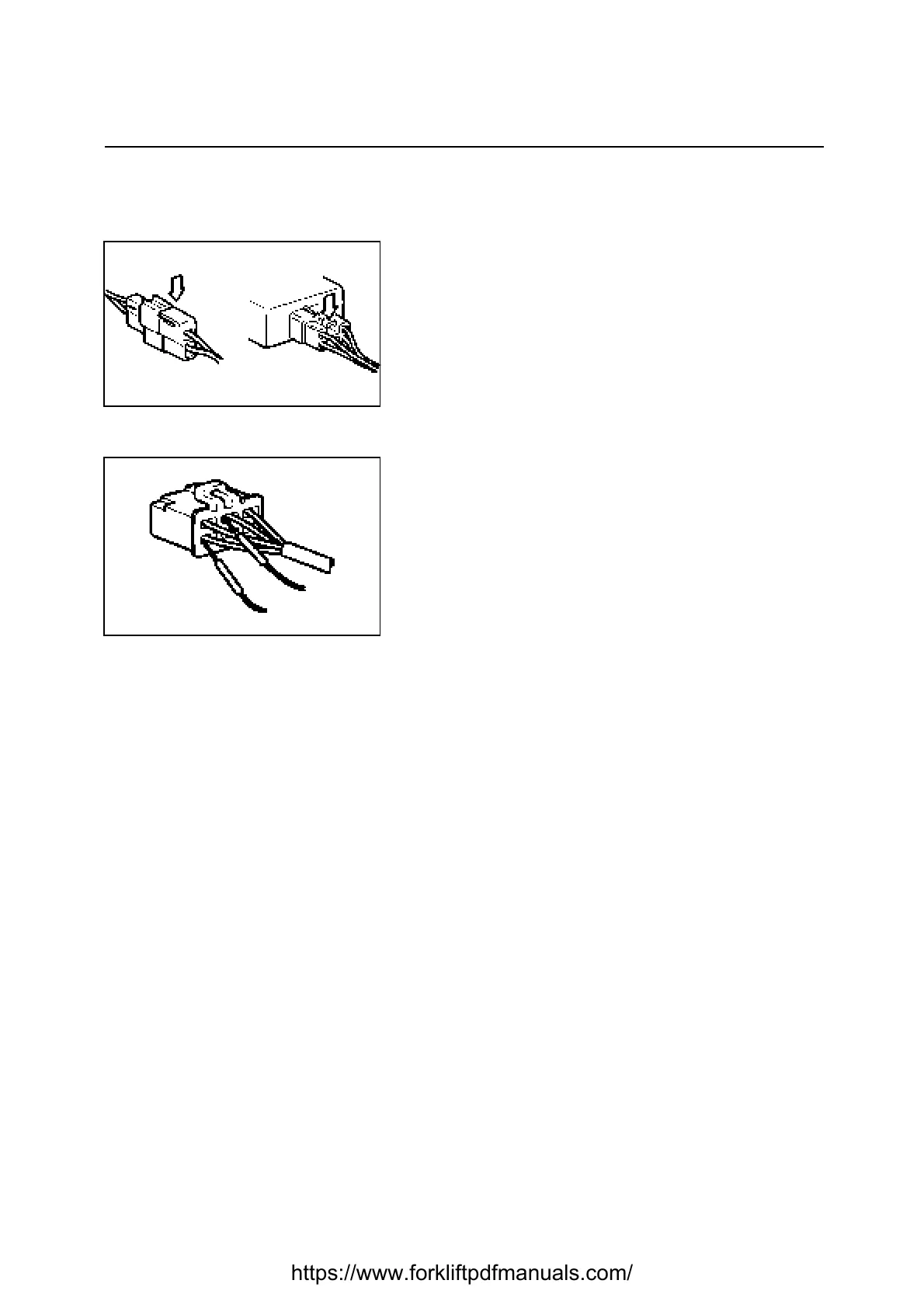

2. When disconnecting a connector, do not pull it at the
harness but hold the connector itself and pull it after
unlocking it. To connect, push the connector fully until it
is locked in position
3. Bring a tester probe into contact with a connector
terminal from the rear side of the coupler (harness side)
4. If insertion from the rear side is impossible, as in the
case of a waterproof connector, bring the tester probe
carefully into contact with the terminal so as not to cause
deformation of the connector terminal
5. Do not touch connector terminals directly with your hand
6. When bringing tester probes into contact with live
terminals, prevent two tester probes from coming into
contact with each other.
