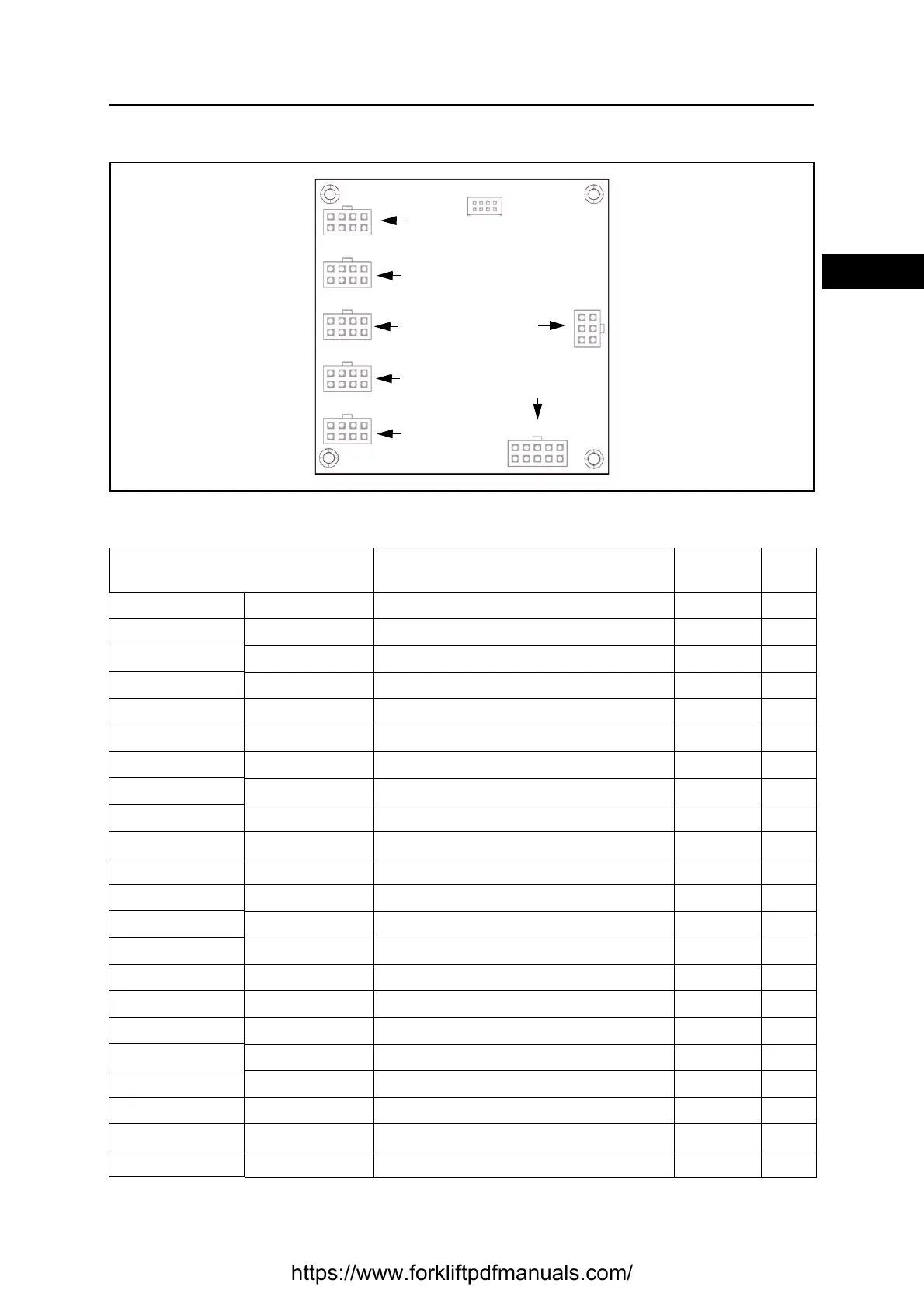

ARMREST CARD
Basic conditions (battery plug connected, key switch ON) [Mini-lever specification vehicle].
See the reference names of the connectors in the electrical diagram.
CN (pin-colour) ⇔ CN (pin-colour)
From ⇔ To
Description Standard Notes
JCAN (1-HG) --- CAN-BUS LOW
JCAN (2-AN) --- CAN-BUS HIGH
JCAN (3-N) --- Negative GND
JCAN (4-SHD) --- Unused
JCAN (5-CR) J34 (12-CR) Board power input +Vb
JCAN (6-N) --- Negative GND
JAUX (1-H) --- +V Hand direction lever potentiometer 5V
JAUX (2-S) --- Manual inversor shuttle signal 0-5V
JAUX (3-BR) --- Hand direction lever negative GND
JAUX (4-LC) --- Reverse direction signal
JAUX (5-V) --- Forward direction signal
JAUX (6-L) J142 (2-L) Input
JAUX (7) --- Unused
JAUX (8-Z) J141 (3-Z) Input
JAUX (9) --- Unused
JAUX (10-N) --- Negative GND
JSOLL (1) --- +V Lifting/lowering potentiometer 5V
JSOLL (2) --- Pot slide 0-5V
JSOLL (3) --- Unused
JSOLL (4) --- Negative potentiometer GND
JSOLL (5) --- Microswitch 5V
JSOLL (6) --- Microswitch 5V
JV
JIV
JTRA
JBRA
JSOLL
JAUX
JCAN
